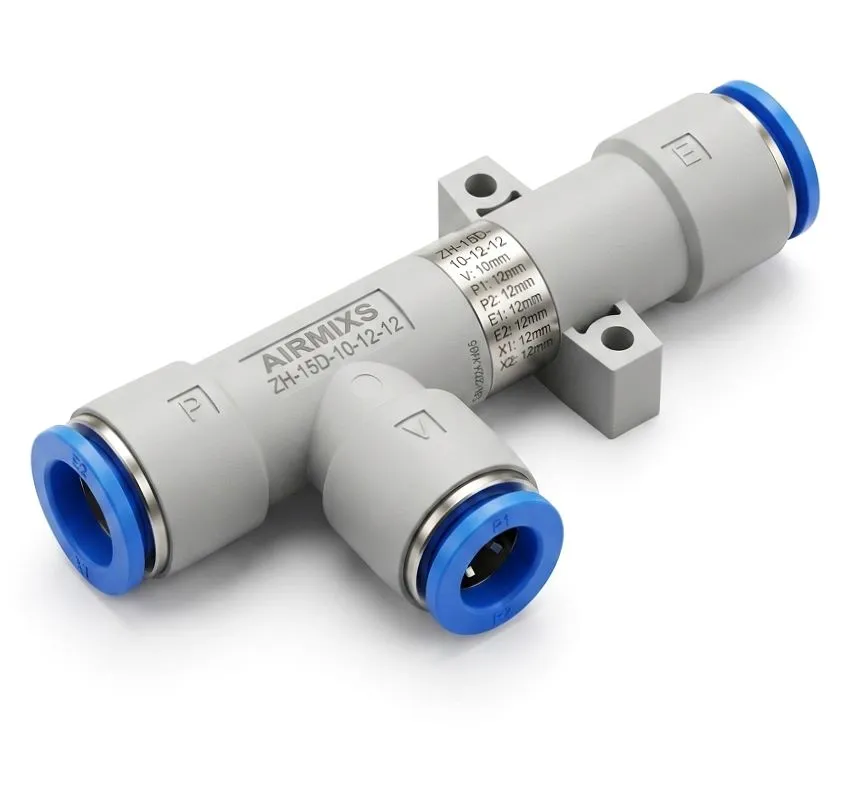

The AIRMIXS ZH-15D-10-12-12 is a compact, high-efficiency body-ported vacuum generator designed for localized vacuum creation in pneumatic systems. Its lightweight resin construction and streamlined profile allow it to be mounted directly at the point of use, making it an ideal choice for robotic pick-and-place systems, packaging machinery, and automated assembly lines.
This model features a 1.5 mm nozzle diameter and is equipped with integrated one-touch fittings for fast and secure tube connections. As a "Body Ported" (D-type) model, it is designed for individual exhaust piping, allowing for versatile installation in tight spaces where a centralized vacuum system is not feasible.
Feature | Specification |
|---|
Model | ZH-15D-10-12-12 |
Type | Body Ported (Without Silencer) |
Nozzle Diameter | 1.5 mm |
Max. Vacuum Pressure | -88 kPa (Standard Type S) / -48 kPa (Large Flow Type L) |
Max. Suction Flow | Up to 75 L/min (ANR) |
Air Consumption | Approx. 95 L/min (ANR) |
Supply Pressure | 0.45 MPa (Standard) / 0.6 MPa (Max) |
Supply Port (P) Size | Ø10 mm One-touch fitting |
Vacuum Port (V) Size | Ø12 mm One-touch fitting |
Exhaust Port (E) Size | Ø12 mm One-touch fitting |
Fluid | Air |
Operating Temperature | 5°C to 50°C |
Body Material | PBT (Polybutylene Terephthalate) / Aluminum Alloy |
