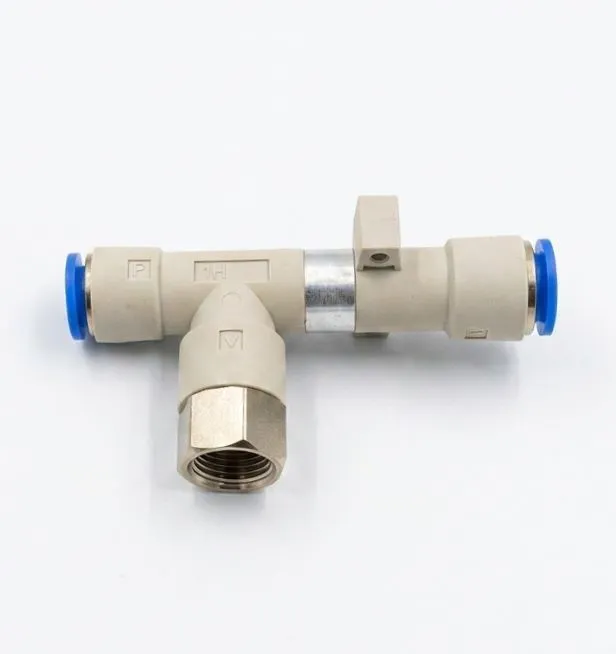

The ZH-15D-10-03-12 is a robust vacuum generator utilizing a T-style housing for straightforward mounting and efficient pneumatic piping. Featuring a larger 1.5mm nozzle diameter, this unit is optimized for applications requiring high vacuum flow and rapid evacuation of air from suction systems.
Constructed from impact-resistant composite materials with durable brass or stainless steel internal components, it ensures consistent vacuum levels even in high-speed automated environments. The three-port configuration (Pressure, Vacuum, and Exhaust) allows for easy integration into existing pneumatic circuits. This specific model is ideal for handling porous materials or larger parts in packaging, automotive, and woodworking industries.
Feature | Specification |
|---|
Model | ZH-15D-10-03-12 |
Nozzle Diameter | 1.5 mm |
Body Style | T-Style Body |
P Port (Pressure) Size | Rc 1/8" |
V Port (Vacuum) Size | Rc 3/8" |
E Port (Exhaust) Size | Rc 3/8" |
Operating Pressure Range | 0.2 ~ 0.5 MPa (29 ~ 72 PSI) |
Max. Vacuum Pressure | -88 kPa |
Max. Suction Flow Rate | 63 L/min (ANR) |
Air Consumption | 100 L/min (ANR) |
Operating Temp. | -5°C to 60°C (No Freezing) |
Compatible Media | Filtered Compressed Air |
