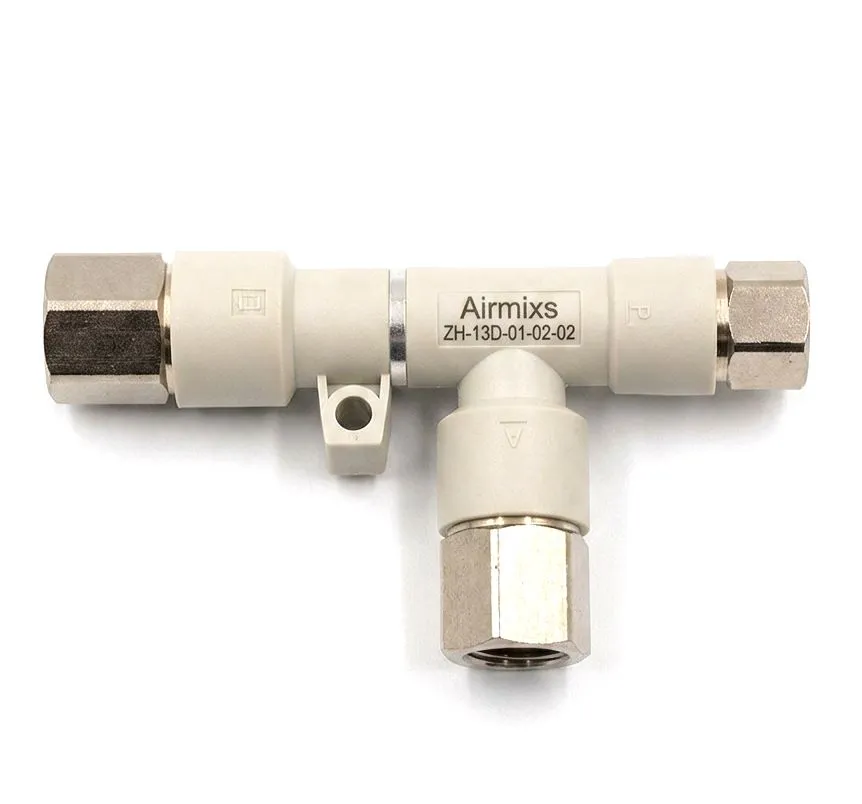

The ZH-13D-01-02-02 is a compact, lightweight vacuum generator utilizing a T-style housing for easy mounting and piping. This model is engineered to provide a stable vacuum source for suction pads, pick-and-place systems, and material handling automation.
Constructed from durable, impact-resistant materials, it features a standardized nozzle diameter that balances air consumption with high vacuum flow. The three-port design includes a primary air pressure supply port (P), a vacuum port (V), and an exhaust port (E). This specific configuration is optimized for rapid response times and consistent performance in high-speed industrial environments.
Feature | Specification |
|---|
Model | ZH-13D-01-02-02 |
Nozzle Diameter | 1.3 mm |
Body Style | T-Style Body |
P Port (Pressure) Size | Rc 1/8" |
V Port (Vacuum) Size | Rc 1/4" |
E Port (Exhaust) Size | Rc 1/4" |
Operating Pressure Range | 0.2 ~ 0.5 MPa |
Max. Vacuum Pressure | -88 kPa |
Max. Suction Flow Rate | 40 L/min (ANR) |
Air Consumption | 75 L/min (ANR) |
Operating Temp. | -5°C to 60°C (No Freezing) |
Compatible Media | Filtered Compressed Air |
