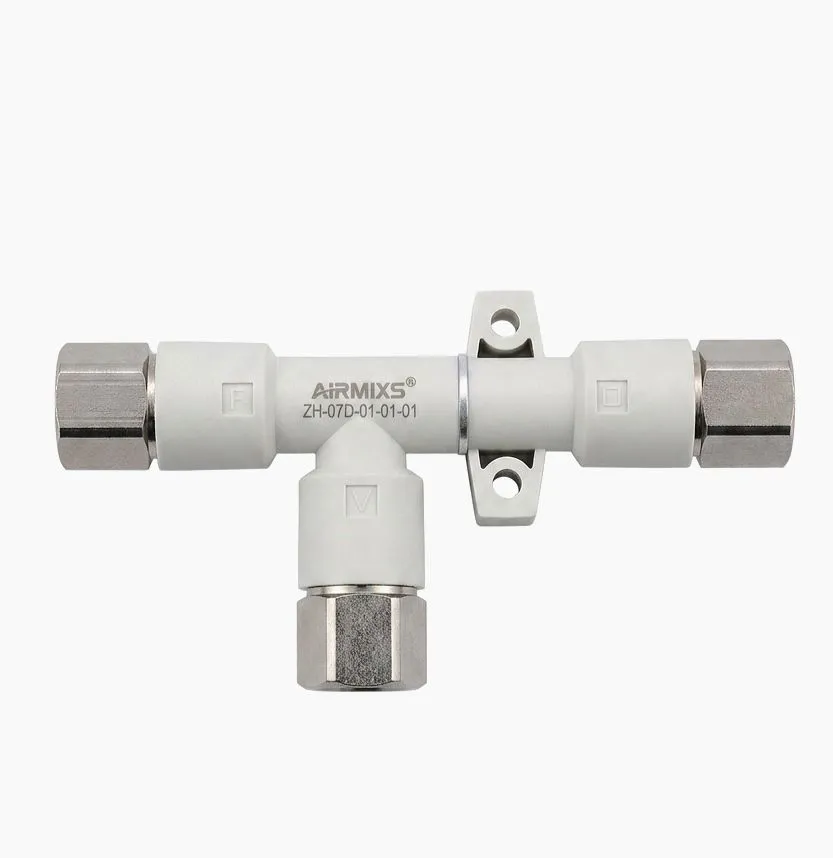

The ZH-07D-01-01-01 is an ultra-compact vacuum generator that utilizes the venturi principle to create a reliable vacuum source. Featuring a precision 0.7mm nozzle diameter, it is engineered for applications that demand high accuracy and minimal energy usage.
The unit is constructed from a high-strength composite resin, making it lightweight enough for mounting on robotic end-effectors without impacting cycle times. Unlike models with one-touch fittings, this specific version features a fully threaded connection system (Rc 1/8") on all ports, providing maximum structural security for high-vibration environments or heavy-duty piping.
Feature | Specification |
|---|
Model | ZH-07D-01-01-01 |
Nozzle Diameter | 0.7 mm |
Body Style | T-Style (Body Ported) |
P Port (Supply) | Rc 1/8" Female Thread |
V Port (Vacuum) | Rc 1/8" Female Thread |
E Port (Exhaust) | Rc 1/8" Female Thread |
Max. Vacuum Pressure | -88 kPa |
Max. Suction Flow | 12 L/min (ANR) |
Air Consumption | 22 L/min (ANR) |
Operating Pressure | 0.2 ~ 0.5 MPa (29 ~ 72 PSI) |
Operating Temp. | 5°C to 50°C |
Material Type | Precision Molded Composite Resin |
