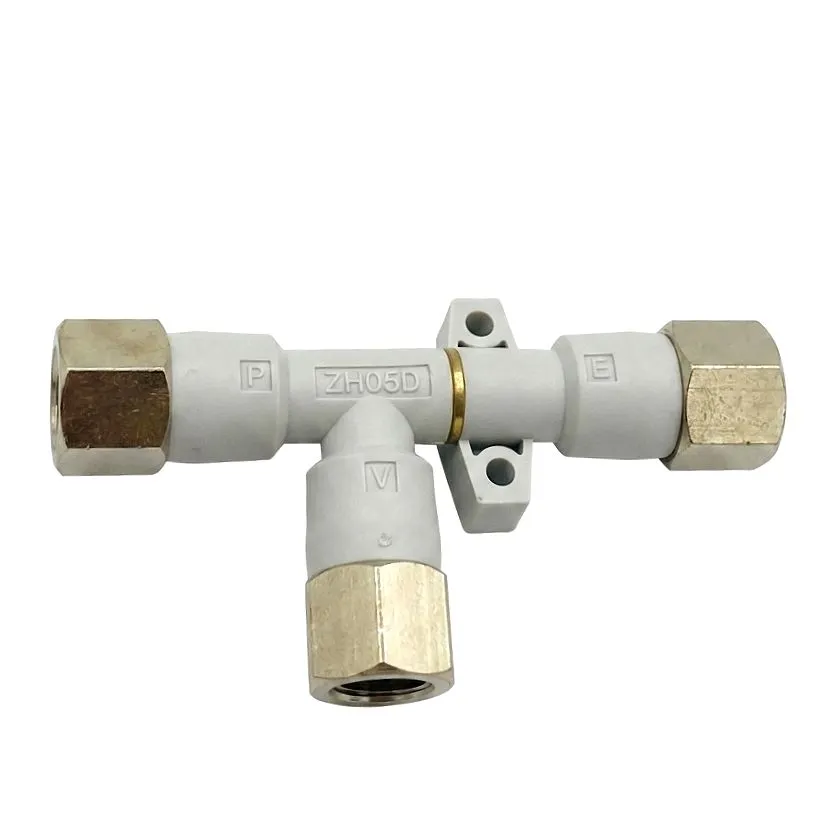

The AIRMIXS ZH-05D-01-01-01 is an ultra-compact, lightweight vacuum generator designed for localized vacuum generation in automated systems. As a "Body Ported" model, it allows for flexible piping configurations with individual exhaust control. Constructed from durable composite resin, it is ideal for pick-and-place applications where space and weight are critical factors. Its simple venturi design ensures rapid response times and high efficiency with low air consumption.
Feature | Details |
|---|
Model | ZH-05D-01-01-01 |
Brand | AIRMIXS Pneumatics |
Ejector Type | Body Ported (Individual Exhaust) |
Nozzle Diameter | 0.5 mm |
Vacuum Pressure (Max) | -88 kPa (Type S - High Vacuum) |
Max Suction Flow | 5.0 L/min (ANR) |
Air Consumption | 13 L/min (ANR) |
Supply Port (P) | Rc 1/8" (Female Thread) |
Vacuum Port (V) | Rc 1/8" (Female Thread) |
Exhaust Port (E) | Rc 1/8" (Female Thread) |
Standard Supply Pressure | 0.45 MPa (4.5 bar) |
Operating Temp. Range | -5 ~ 60°C (No freezing) |
Material | Composite Resin (Body) / Aluminum (Fittings) |
