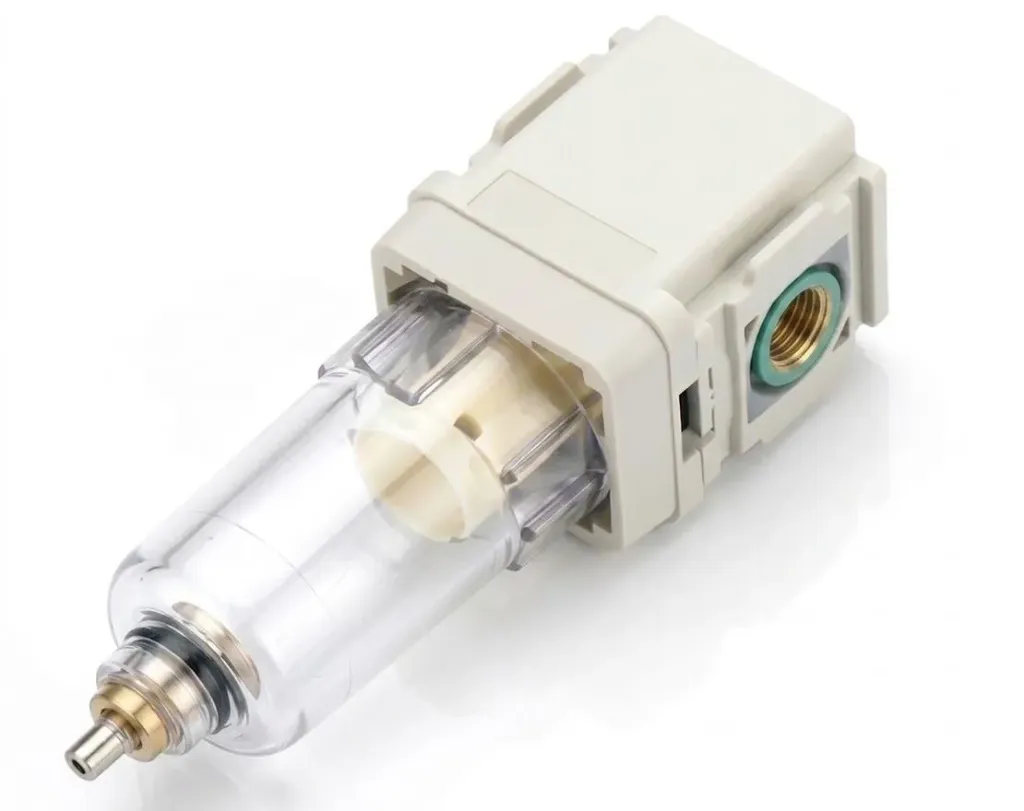

The AIRMIXS W3000-03-G3/8" Air Filter Regulator is a 2-in-1 compressed air treatment unit engineered for mid-flow pneumatic automation systems, machinery lines, and control cabinets. Combining a 5-micron filter element with a precision pressure regulator inside a 3000-series frame, this unit extracts moisture and particulate contaminants while maintaining stable downstream operating pressure.
Constructed with a die-cast aluminum housing and a transparent polycarbonate bowl enclosed in a protective metal guard, it offers high impact resistance and visual clarity for condensate monitoring. The top regulation handle features a push-to-lock detent mechanism to prevent pressure drift caused by operational machine vibration.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | W3000-03-G3/8" / W3000-03 / AW3000-03 |
Series / Size | 3000 Series (Medium Frame) |
Component Type | Piggyback Air Filter Regulator (2-in-1 Unit) |
Port Size | G 3/8" (BSP) / NPT 3/8" |
Gauge Port Size | G 1/8" |
Filtration Rating | 5 µm (Standard) / 25 µm (Optional) |
Max Supply Pressure ($p_1$) | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Adjustable Pressure Range ($p_2$) | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~1,800 – 2,200 L/min |
Bowl & Guard | Polycarbonate (PC) Bowl with Steel Protective Guard |
Drain Mechanism | Manual Twist Drain / Semi-Auto Differential Drain |
Body Material | Heavy-Duty Die-Cast Aluminum Alloy |
Working Temperature Range | 5°C to 60°C (41°F to 140°F) |
Fluid Medium | Compressed Air / Inert Gases |
