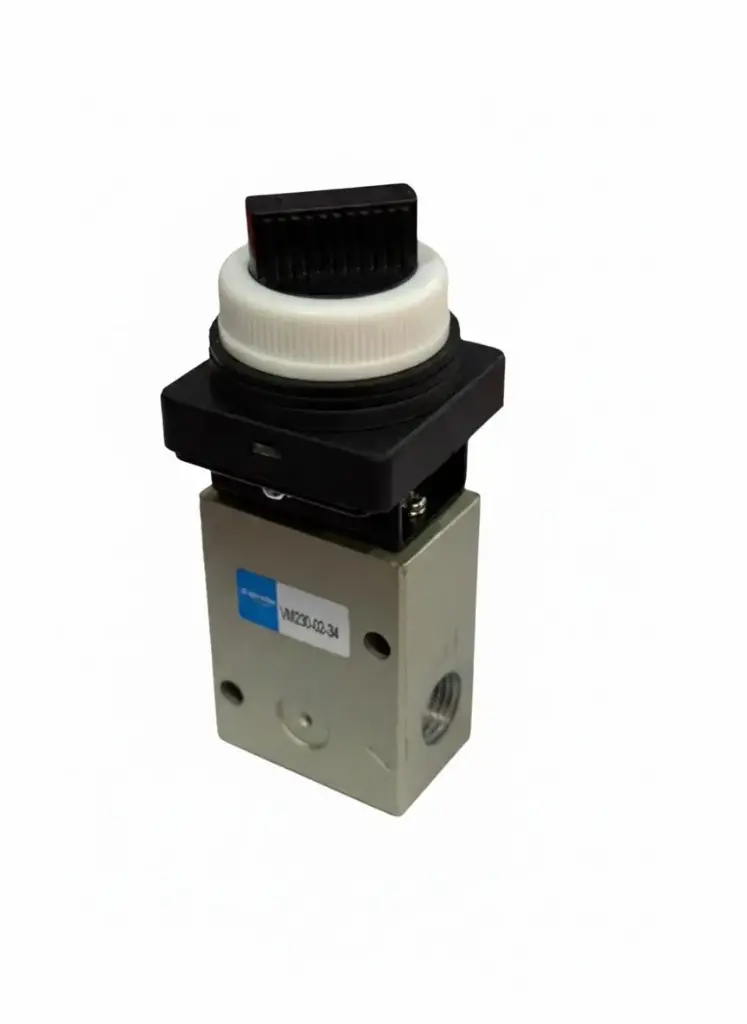

The VM230-02-34 is a robust manual selector valve used for persistent signal control in pneumatic systems. The "34" designation indicates a 2-position twist knob that stays in the selected position until manually rotated back. This latching action makes it ideal for switching operational modes or locking out air circuits without requiring continuous manual pressure.
Feature | Specification |
|---|
Model | VM230-02-34 |
Piping Type | Side Piping |
Number of Ports | 3 Ports |
Valve Position | 2-Position, Normally Closed (NC) |
Actuator Type | Twist Selector (2-Position) |
Port Size | 1/4" Rc / PT |
Effective Area (Cv) | 19 $mm^2$(1.0 Cv) |
Operating Pressure | 0 to 1.0 MPa(0 to 145 PSI) |
Ambient/Fluid Temp | -5°C to 60°C (No freezing) |
Body Material | Aluminum Die-cast / Zinc |
