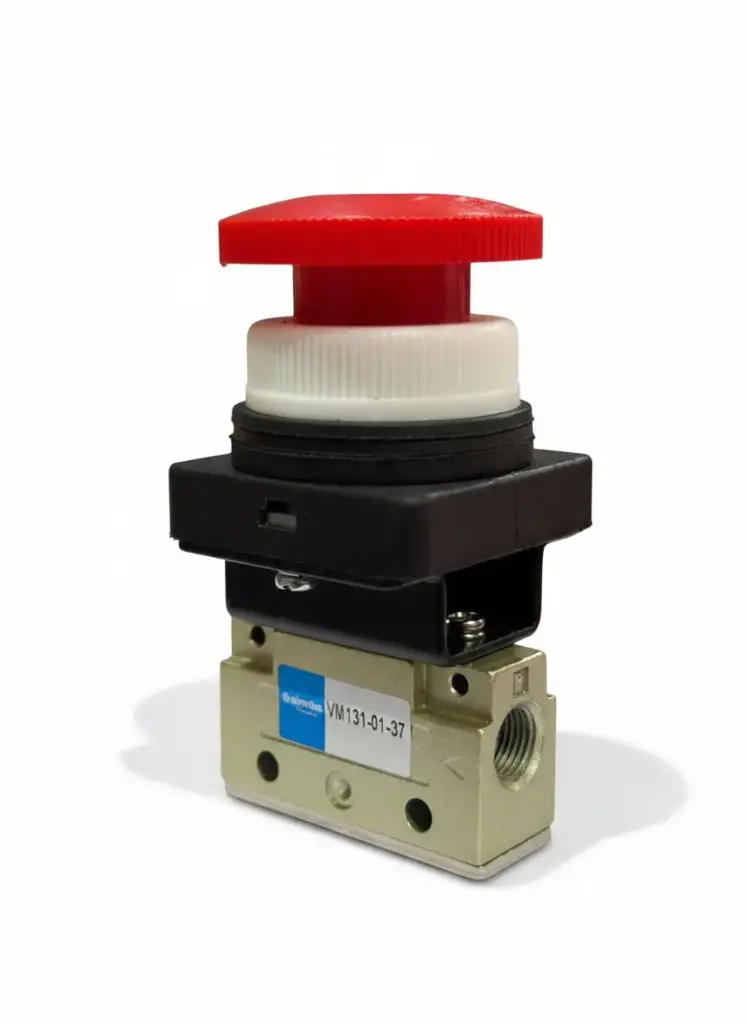

The VM131-01-37 is a rugged pneumatic control valve designed for manual signal locking or emergency-stop bypass. The "37" designation indicates a Twist-to-Lock/Reset mushroom actuator. When the red button is pressed, it locks in place, maintaining the valve's state until the operator physically twists the button to release it.
Feature | Specification |
|---|
Model | VM131-01-37 |
Piping Type | Side Piping |
Number of Ports | 3 Ports (Input, Output, Exhaust) |
Valve Position | 2-Position, Normally Closed (NC) |
Actuator Type | Twist Selector / Mushroom Reset |
Port Size | 1/8" Rc / G / |
Operating Pressure | -100 kPa to 1.0 MPa(Vacuum to 145 PSI) |
Fluid/Ambient Temp | -5°C to 60°C (No freezing) |
Flow Capacity (Cv) | Approx. 1.0 Cv |
Body Material | Aluminum Alloy / Zinc Die-cast |
