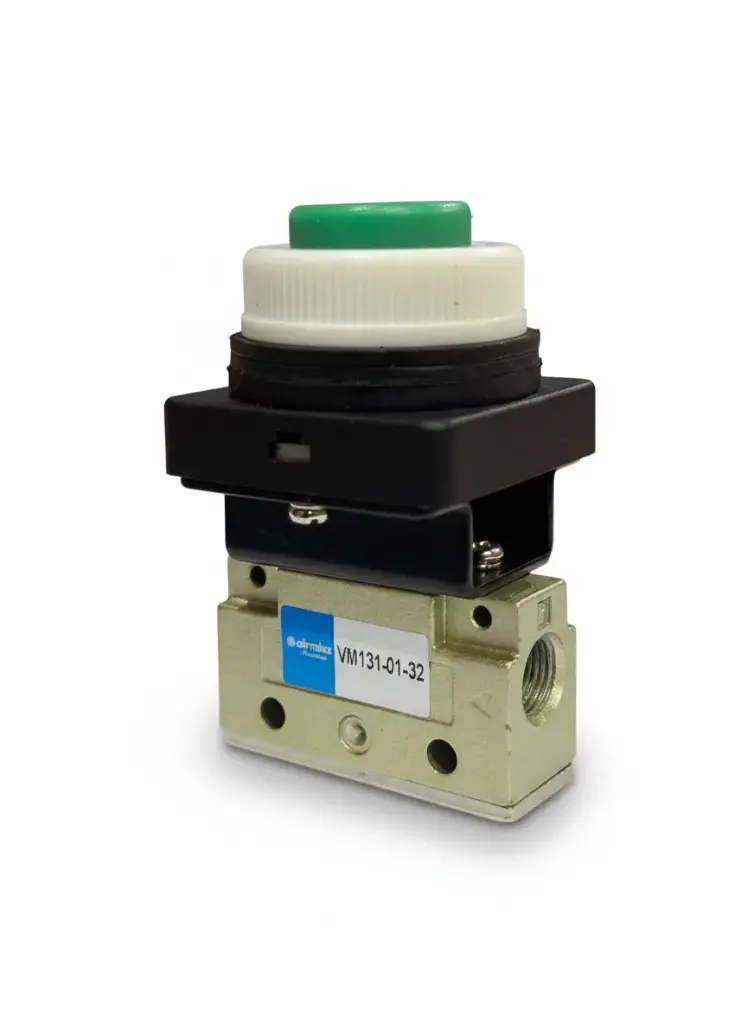

The VM131-01-32 is a robust, manually operated valve used to trigger pneumatic signals. The Extended Push Button (the "32" designation) provides a raised profile that is easier to locate and press than flush-mount versions, while remaining more compact than a mushroom-style button.
Feature | Specification |
|---|
Model | VM131-01-32 |
Piping Type | Side Piping |
Number of Ports | 3 Ports (P=Input, A=Output, R=Exhaust) |
Position/Action | 2-Position, Normally Closed (NC) |
Actuator Type | Extended Push Button |
Port Size | 1/8" Rc / G / |
Operating Pressure | -100 kPa to 1.0 MPa(Vacuum to 145 PSI) |
Ambient/Fluid Temp | -5°C to 60°C (No freezing) |
Effective Area (Cv) | 6 $mm^2$(Approx. 0.33 Cv) |
Body Material | Zinc Die-cast / Aluminum Alloy |
