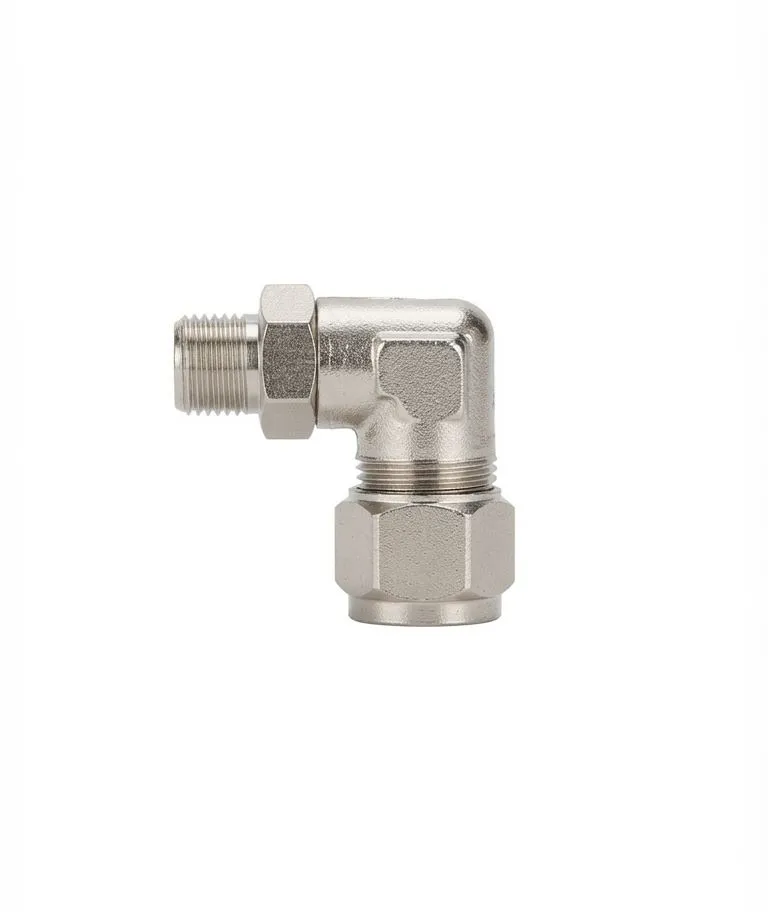

The TKT-PL6-01 is an industrial-grade, 90-degree male elbow connector designed for high-efficiency pneumatic and fluid control systems. Featuring a precision-machined nickel-plated brass thread body and a robust engineering plastic sleeve, this fitting provides a secure, leak-proof 90° angle transition between tubing and threaded ports.
Property | Value / Specification |
|---|
Model Code | TKT-PL6-01 |
Fitting Type | 90° Male Elbow Fitting (Push-In / Compression) |
Tube Outer Diameter (O.D.) | $\varnothing 6\text{ mm}$ |
Thread Connection | R 1/8" / PT 1/8" / NPT 1/8" Male Thread |
Fluid Medium | Compressed Air, Vacuum, Water (conditional) |
Operating Pressure Range | $0\text{ to }1.0\text{ MPa}$($0\text{ to }10\text{ bar}$/ $0\text{ to }145\text{ PSI}$) |
Operating Vacuum Rating | $-100\text{ kPa}$($-29.5\text{ inHg}$) |
Operating Temperature | $0^\circ\text{C}$to $60^\circ\text{C}$($32^\circ\text{F}$to $140^\circ\text{F}$) |
Material Construction | Nickel-plated Brass (metal components), PBT/POM (release ring), NBR (O-ring) |
Compatible Tubing | Polyurethane (PU), Polyamide (Nylon), Polyethylene (PE) |
