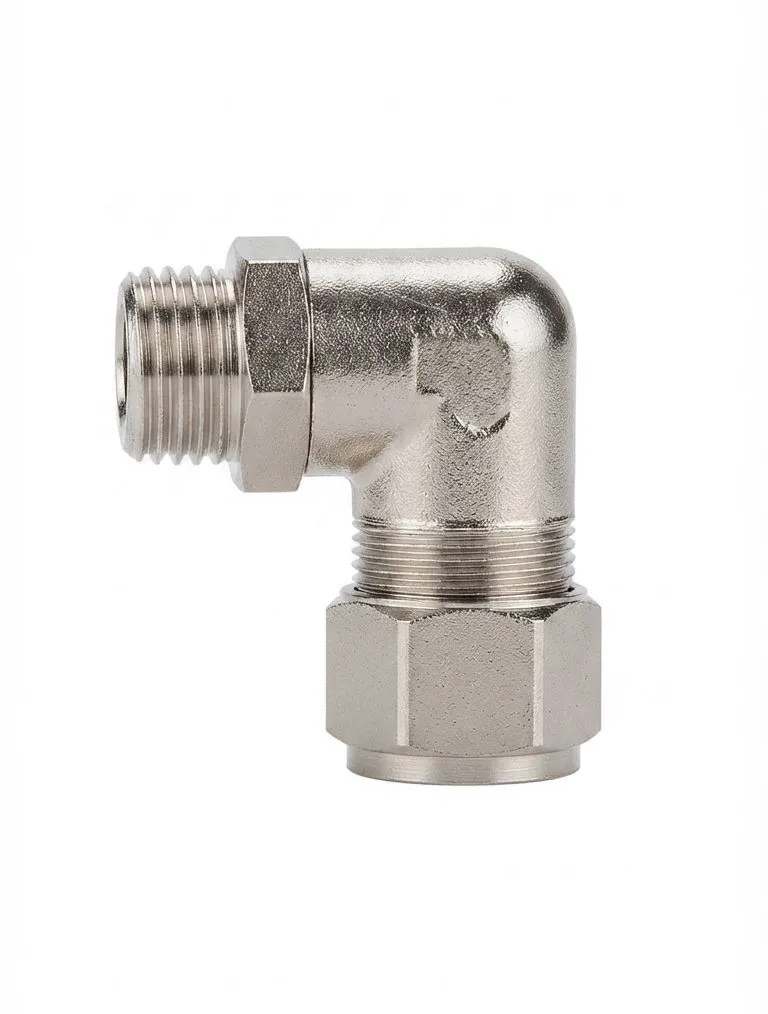

The TKT-PL12-01 is a heavy-duty, industrial 90-degree male elbow quick-connect fitting engineered for high-flow pneumatic and fluid handling systems. Manufactured from durable nickel-plated brass, it forms a robust, leak-proof 90° transition between a large 12mm outer diameter tube and a compact 1/8" BSPT / PT male threaded port.
Specification Parameter | Technical Value |
|---|
Model Code | TKT-PL12-01 |
Fitting Type | 90° Male Elbow Compression / Quick Connector |
Tube Connection Size | $\varnothing 12\text{ mm}$Tube Outer Diameter (O.D.) |
Thread Connection Size | R 1/8" / PT 1/8" / NPT 1/8" Male Thread |
Construction Material | Solid Brass with Electroless Nickel Plating |
Fluid Medium | Compressed Air, Vacuum, Water (conditional) |
Operating Pressure Range | $0\text{ to }1.0\text{ MPa}$($0\text{ to }10\text{ bar}$/ $0\text{ to }145\text{ PSI}$) |
Vacuum Rating | Up to $-100\text{ kPa}$($-29.5\text{ inHg}$) |
Operating Temperature | $0^\circ\text{C}$to $60^\circ\text{C}$($32^\circ\text{F}$to $140^\circ\text{F}$) |
Compatible Tubing | Polyurethane (PU), Polyamide (Nylon), Polyethylene (PE) |
