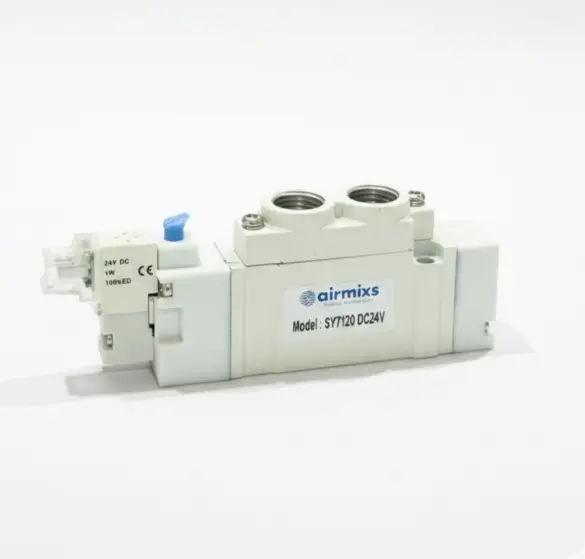

The SY7120 DC24V is engineered for high-density installations where manifold mounting is required to save space. It provides a fast, reliable pneumatic signal to extend or retract double-acting cylinders.
Feature | Specification |
|---|
Model | SY7120 DC24V |
Valve Type | 5-Port, 2-Position (5/2 Way) Single Solenoid |
Actuation | Internal Pilot / Solenoid |
Port Size | 1/4" (or 1/8" base mounted) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W – 0.4W(Energy Saving Type) |
Operating Pressure | 0.15 – 0.7 MPa(21 – 101 PSI) |
Max. Frequency | 5 Cycles per Second |
Response Time | $\leq$30ms |
Body Material | Aluminum Alloy / High-Strength Resin |
