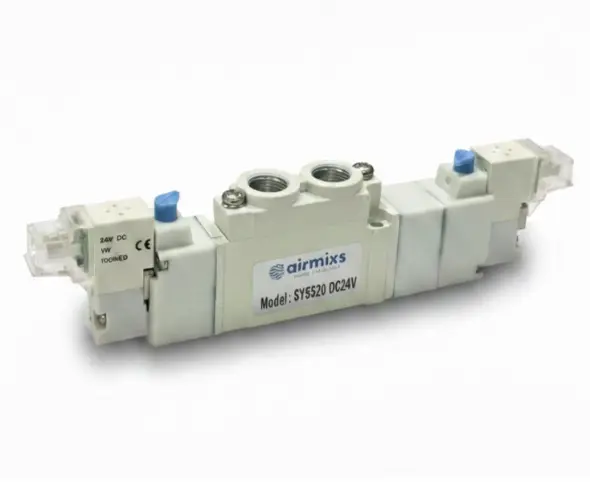

The SY5520 DC24V offers major advances in performance for cost-effective automation solutions. Its compact design allows for single-unit use or high-density manifold mounting to save space in control cabinets.
Feature | Specification |
|---|
Model | SY5520-5DZ / SY5520-5LZD |
Valve Type | 5-Port, 3-Position (5/3 Way) |
Center Function | Pressure Center |
Actuator Type | Double Solenoid (Internal Pilot) |
Port Size | 1/8" Rc / G / NPT |
Operating Pressure | 0.1 to 0.7 MPa(14.5 to 101 PSI) |
Effective Area (Cv) | 10.6 – 12.6 $mm^2$(Cv = 0.59 to 0.70) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W(Standard energy-saving type) |
Response Time | $\leq$32ms (at 0.5 MPa) |
Protection Class | IP67(Dust-tight and temporary immersion) |
