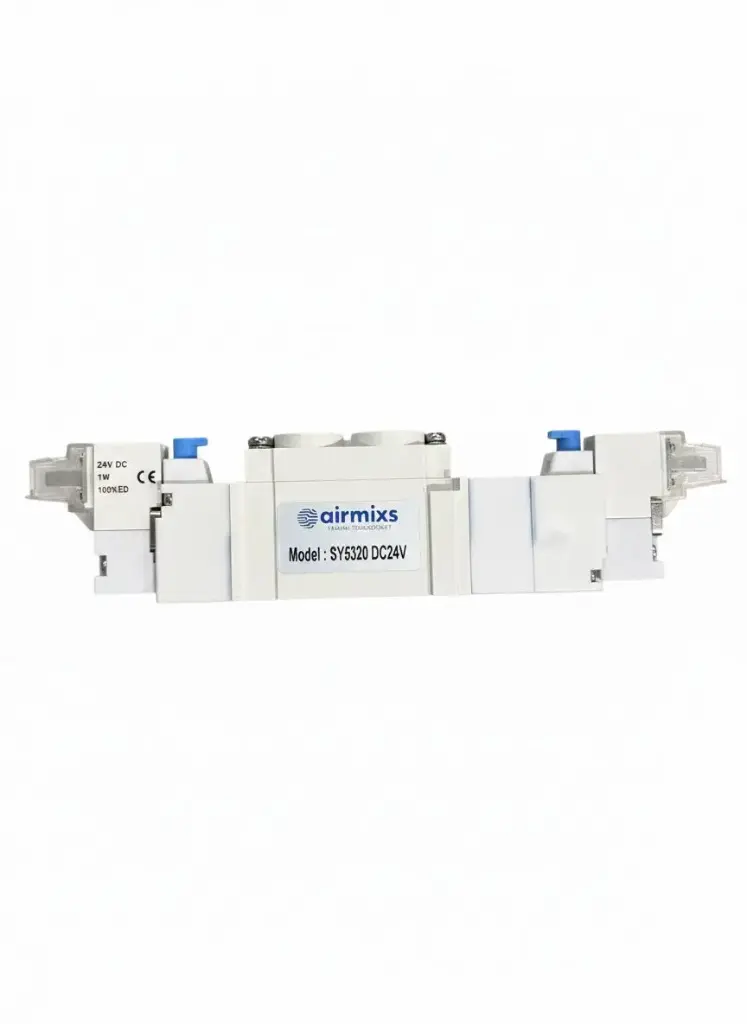

The SY5320 DC24V is an industrial-grade directional control valve engineered for precision pneumatic systems that require a balanced pressure state during neutral operation. Because it is a Pressure Center valve, it ensures that an actuator (like a cylinder) remains pressurized on both sides when de-energized, which is often used to prevent "lurching" or "dropping" in vertical or balanced-load applications.
Feature | Specification |
|---|
Model | SY5320-5L / SY5320-5LZ / SY5320-5LOZ |
Valve Type | 5-Port, 3-Position (5/3 Way) |
Center Function | Pressure Center(Ports A & B open to Pressure P) |
Actuation Type | Double Solenoid (Internal Pilot) |
Port Size | 1/4"(Base Mounted) |
Effective Area (Cv) | Approx. 0.5 - 0.7($12.6 mm^2$to $18.0 mm^2$) |
Operating Pressure | 0.2 to 0.7 MPa(29 to 101 PSI) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W(Standard) / 0.1W(With power saving circuit) |
Response Time | $\leq$50ms |
Mechanical Life | 50 Million Cycles |
