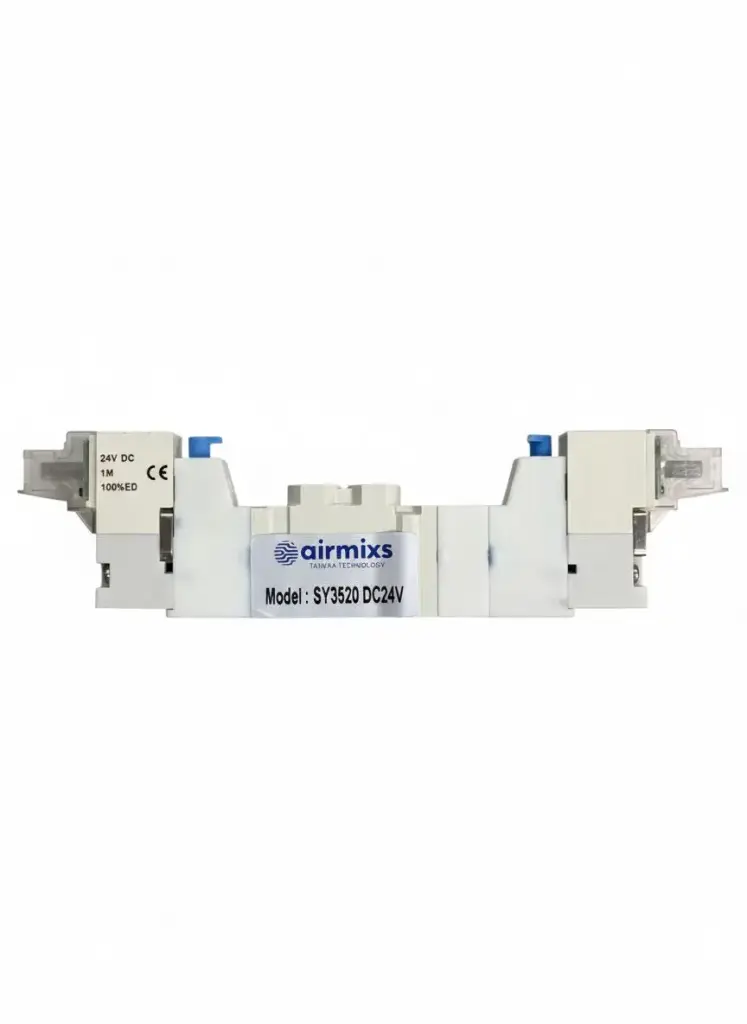

The SY3520 DC24V is a precision directional control valve used in advanced automation systems where intermediate positioning of an actuator is required. Because it is a 3-position valve, it can stop a cylinder mid-stroke by blocking the exhaust of air from both sides of the piston.
Feature | Specification |
|---|
Model | SY3520-5LZ / SY3520-5D |
Valve Type | 5-Port, 3-Position (5/3 Way) |
Center Function | Closed Center(Pressure is held in ports) |
Actuator Type | Double Solenoid (Internal Pilot) |
Port Size | 1/8"(Base Mounted) |
Operating Pressure | 0.2 to 0.7 MPa(29 to 101 PSI) |
Effective Area (Cv) | Approx. 0.25 - 0.3(Standard flow type) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W(Standard) |
Response Time | $\leq$50ms |
Protection Class | IP67(select models) / IP50(standard) |
