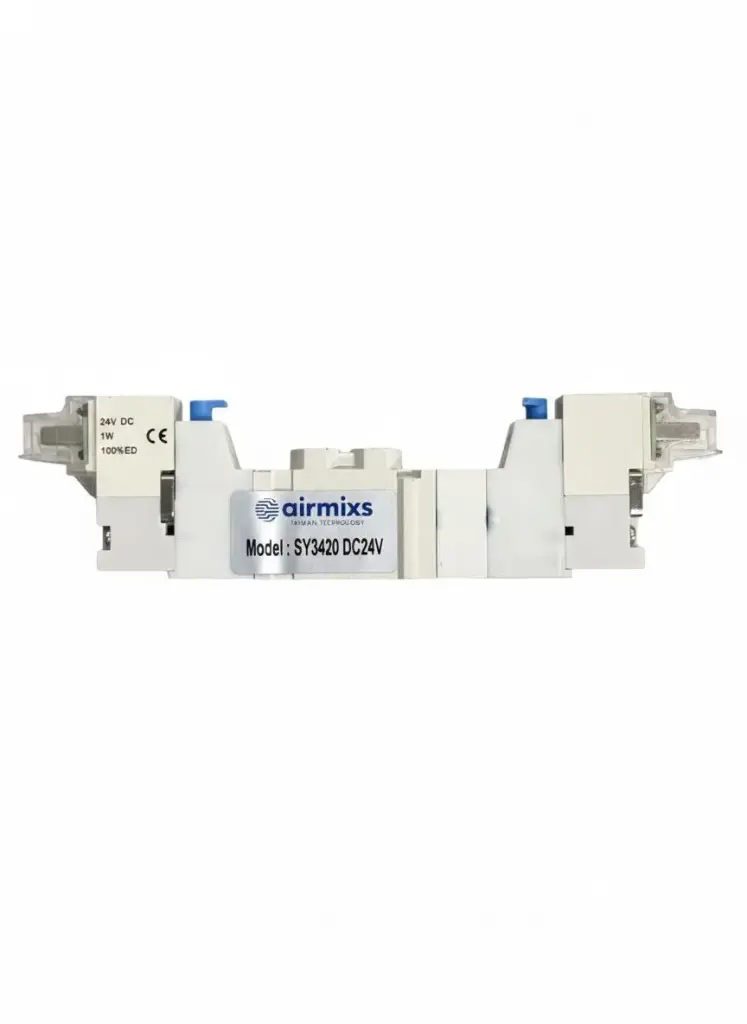

The SY3420 DC24V is a precision directional control valve used in advanced automation where the manual positioning of a cylinder is required during machine downtime or emergency stops. Because it is an Exhaust Center valve, it releases the air pressure from both sides of a double-acting cylinder when it enters the neutral state.
Feature | Specification |
|---|
Model | SY3420-5L / SY3420-5LZ / SY3420-5LOZ |
Valve Type | 5-Port, 3-Position (5/3 Way) |
Center Function | Exhaust Center(Ports A/B connected to Exhaust) |
Actuator Type | Double Solenoid (Internal Pilot) |
Port Size | 1/8"(Base Mounted) |
Effective Area (Cv) | Approx. 0.25 - 0.3(Standard flow type) |
Operating Pressure | 0.2 to 0.7 MPa(29 to 101 PSI) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W(Standard) |
Response Time | $\leq$50ms |
Operating Temp. | -10°C to 50°C |
