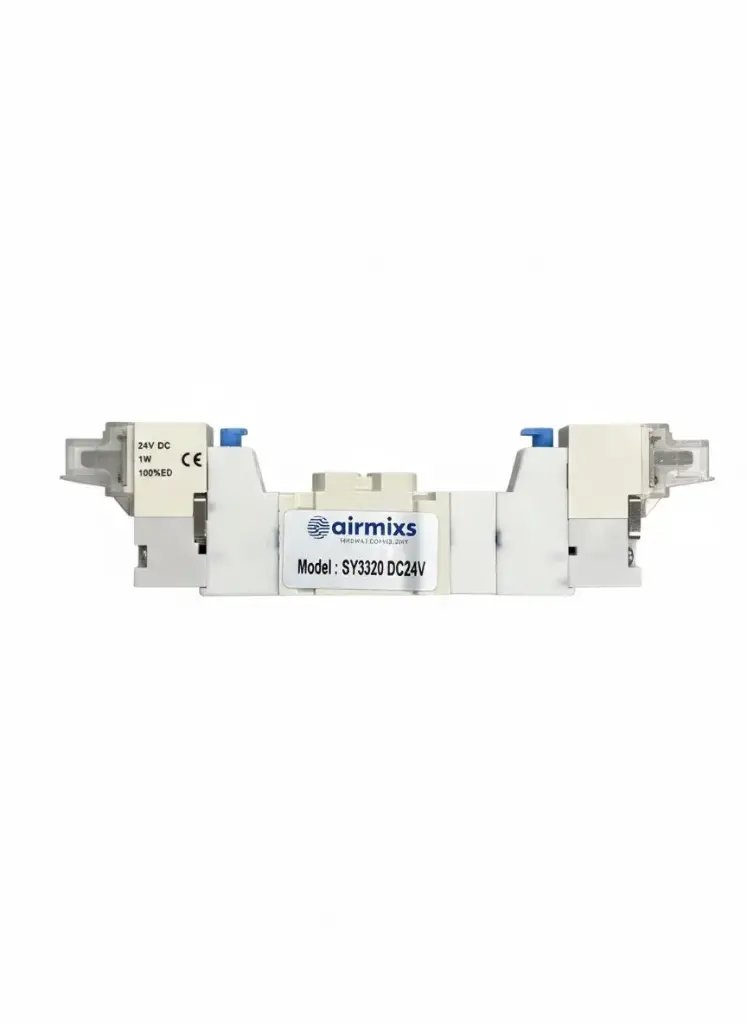

The SY3320 DC24V is a specialized directional control valve used in precision automation systems that require balanced pressure across a cylinder during a neutral state. By maintaining pressure on both sides of a piston when de-energized, it provides a unique method of load stabilization and prevents "lurching" when the valve is re-energized.
Feature | Specification |
|---|
Model | SY3320-5L / SY3320-5LZ / SY3320-5LOZ |
Valve Type | 5-Port, 3-Position (5/3 Way) |
Center Function | Pressure Center(Ports A/B connected to Supply P) |
Actuator Type | Double Solenoid (Internal Pilot) |
Port Size | 1/8"(Base Mounted) |
Effective Area (Cv) | Approx. 0.25 - 0.3(Standard flow type) |
Operating Pressure | 0.2 to 0.7 MPa(29 to 101 PSI) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W(Standard) / 0.1W(Energy-saving type) |
Response Time | $\leq$50ms |
Ambient Temp. | -10°C to 50°C |
