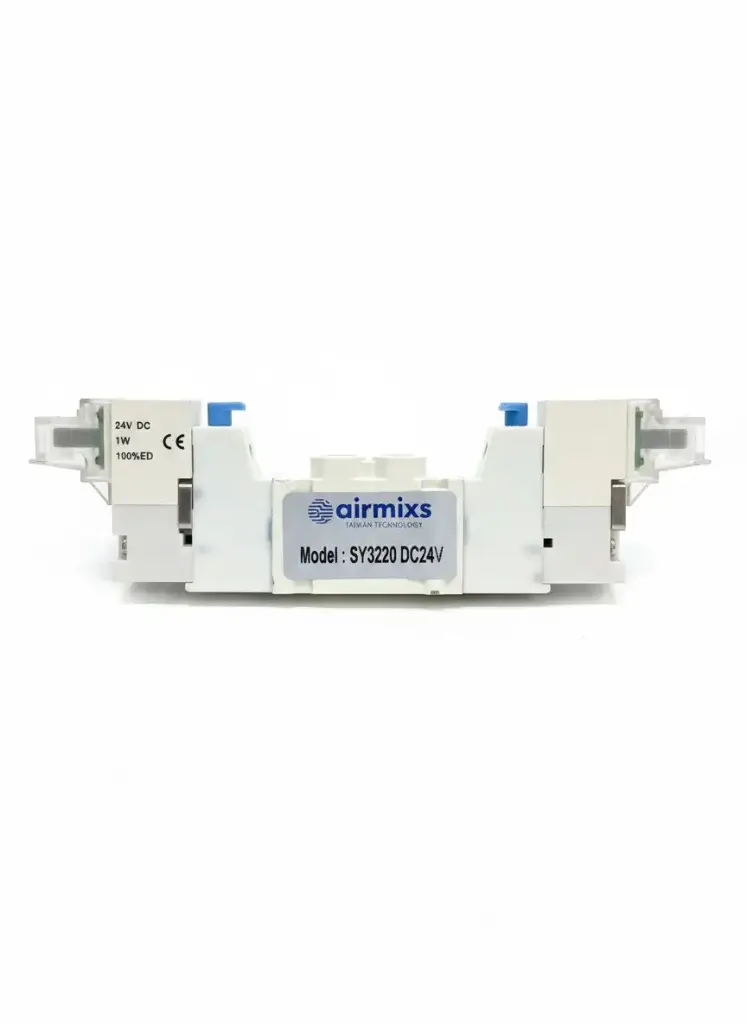

The SY3220 DC24V is an ultra-compact directional control valve designed for precision industrial automation. Because it uses two solenoids, it only requires a momentary electrical pulse to switch states; the valve will stay in its last position even if power is completely lost, ensuring safety and consistency in machine operations.
Feature | Specification |
|---|
Model | SY3220-5L / SY3220-5LZ |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Double Solenoid(Bistable / Latching) |
Port Size | 1/8"(Base Mounted) |
Effective Area (Cv) | Approx. 0.3 - 0.7(Cv depends on sub-plate) |
Operating Pressure | 0.1 to 0.7 MPa(14.5 to 101 PSI) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W(Standard) / 0.1W(Energy-saving type) |
Response Time | $\leq$15ms |
Mechanical Life | 50 Million Cycles |
