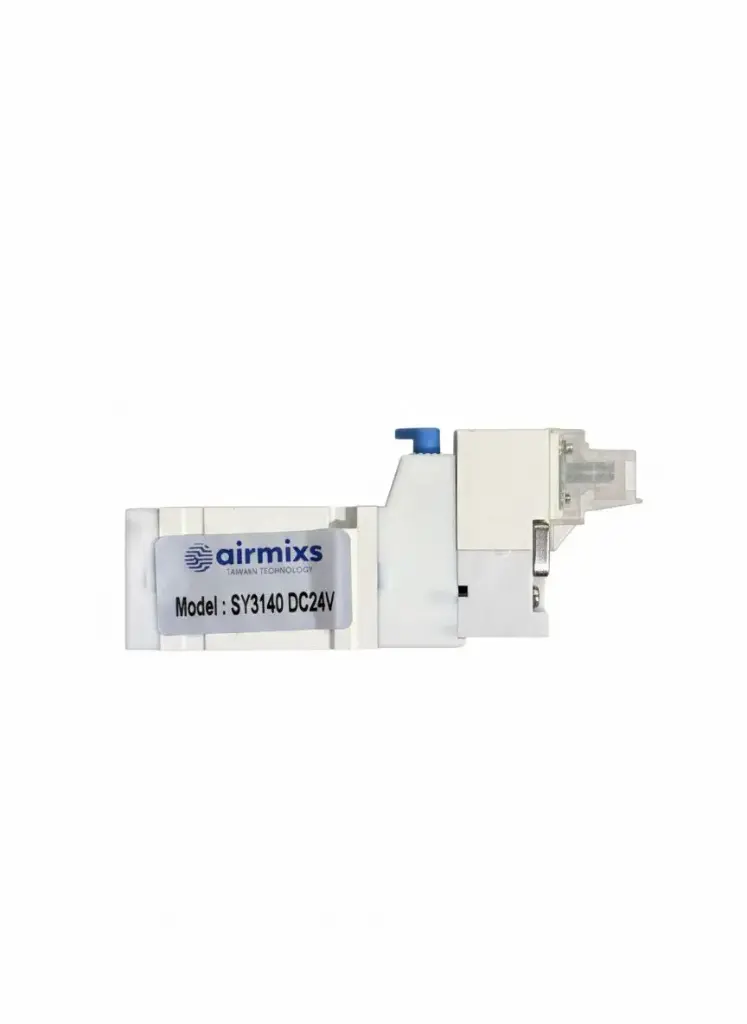

The SY3140 DC24V is a "monostable" valve, meaning it uses an internal spring return to automatically shift the spool back to its home position when electrical power is removed. It is a core component for modern pneumatic systems where high-speed switching and energy efficiency are required.
Feature | Specification |
|---|
Model | SY3140-5L / SY3140-5LZ / SY3140-5LOZ |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Single Solenoid(Internal Pilot) |
Port Size | 1/8"(Base Mounted) |
Operating Pressure | 0.1 to 0.7 MPa(14.5 to 101 PSI) |
Effective Area (Cv) | 0.3 to 0.7(Approx. 12.6 $mm^2$) |
Operating Voltage | 24V DC |
Power Consumption | 0.35W(Standard) / 0.1W(Energy-saving type) |
Response Time | 15ms to 32ms |
Ambient/Fluid Temp. | -10°C to 50°C |
Body Material | Zinc Die-cast |
