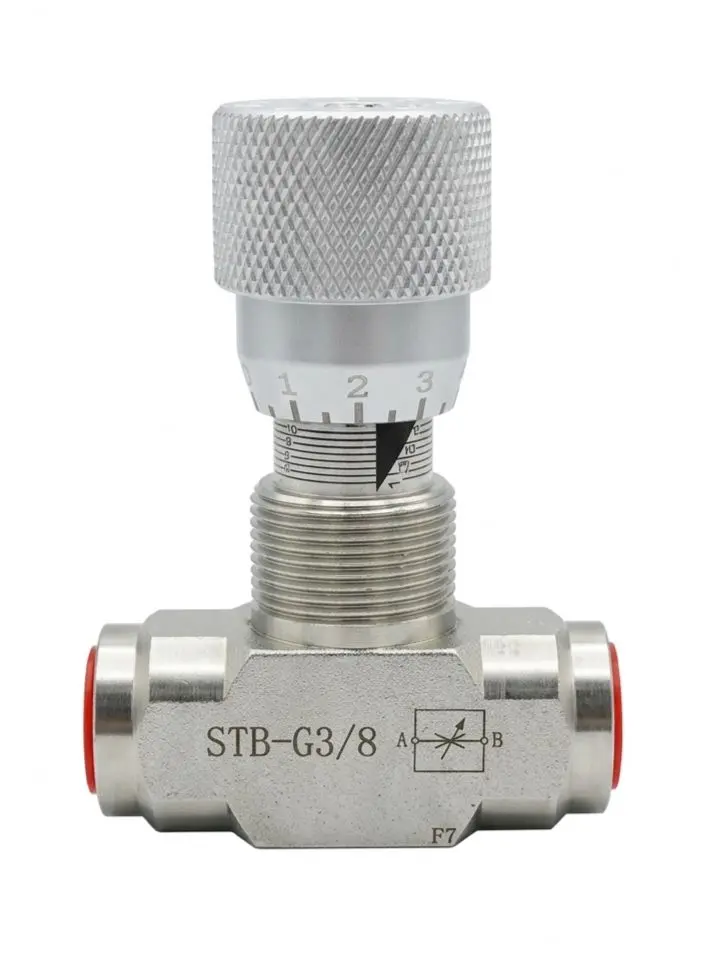

AIRMIXS STB-G3/8 Bi-Directional Hydraulic Flow Valve

The STB-G3/8 is a non-pressure-compensated two-way flow restrictor. It allows for precise throttling of hydraulic fluid from Port A to B and Port B to A with equal resistance. The valve features a robust carbon steel body with a specialized anti-corrosion surface treatment (typically chrome or zinc plating). Its internal needle mechanism is made of hardened and ground steel to ensure a high-precision seal and minimal leakage even under high-pressure industrial conditions. The adjustment knob is equipped with a graduated scale for repeatable settings and a hex-socket locking screw to secure the flow rate during machine operation.

Feature

Specification

Model

STB-G3/8 (Industrial Alt: DV-10)

Port Thread Size

G 3/8" BSPP

Max. Flow Rate

30 L/min

Max. Working Pressure

40 MPa (400 bar / 5800 PSI)

Body Material

High-Strength Carbon Steel

Internal Components

Tempered and Ground Steel

Operating Temperature

-20°C to +90°C

Recommended Media

Mineral-based Hydraulic Oil

Adjustment Type

Manual Graduated Knob with Set Screw


370.00 SR 370.00 SR
