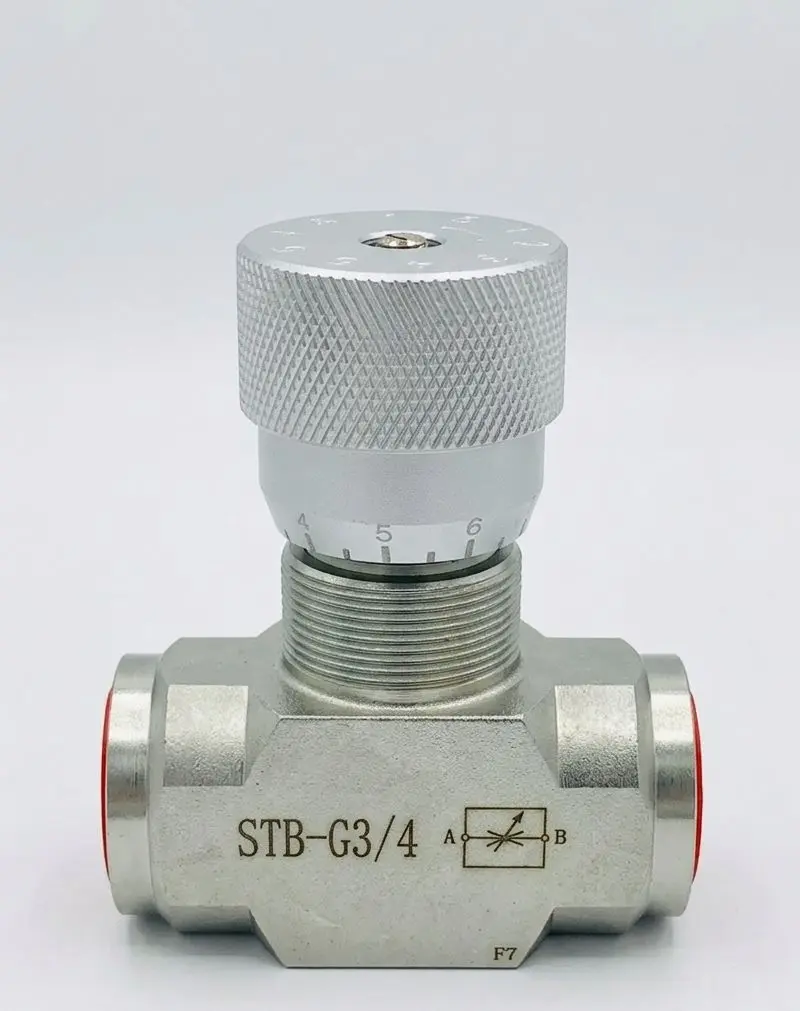

AIRMIXS STB-G3/4 Bi-Directional Hydraulic Flow Valve

The STB-G3/4 is a two-way flow restrictor that allows for precise throttling of hydraulic fluid in both directions. Unlike one-way valves, this unit provides equal resistance from Port A to B and Port B to A. It is constructed with a robust carbon steel body featuring a specialized anti-corrosion surface treatment. The valve utilizes a needle-type internal mechanism made of hardened steel to ensure a high-precision seal and minimal leakage under high-pressure conditions. The adjustment knob includes a graduated scale for repeatable settings and a locking screw to prevent accidental adjustments during machine operation.

Feature

Specification

Model

STB-G3/4 (Industrial Alt: DV-20)

Port Thread Size

G 3/4" BSPP

Max. Flow Rate

80 L/min

Max. Working Pressure

35 MPa (350 bar / 5076 PSI)

Body Material

High-Strength Carbon Steel

Internal Components

Tempered and Ground Steel

Operating Temperature

-20°C to +90°C

Recommended Media

Mineral-based Hydraulic Oil

Adjustment Type

Manual Graduated Knob with Lock


470.00 SR 470.00 SR
