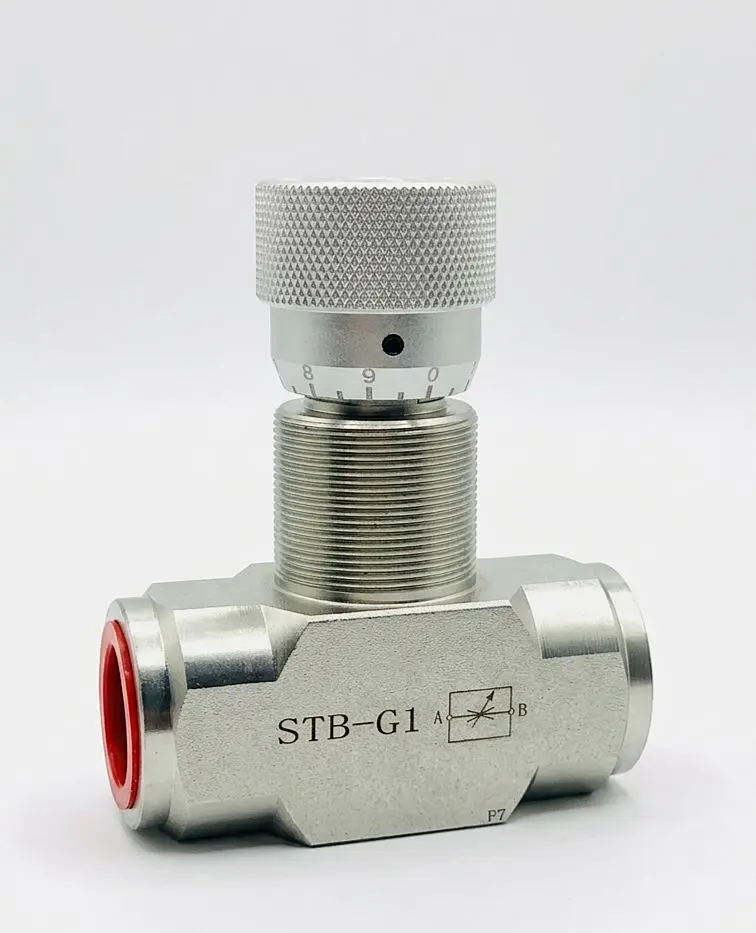

The AIRMIXS STB-G1 is a heavy-duty, high-precision flow control valve designed for the accurate regulation of air, water, and oil in high-pressure systems. Constructed from high-grade stainless steel, this valve is engineered for durability and corrosion resistance in demanding industrial environments.
It features a calibrated adjustment knob with a micrometer-style scale (increments 0–9), allowing for repeatable and precise flow settings. The integrated locking nut ensures that the desired flow rate remains stable even under high vibration. This valve is ideal for applications requiring consistent speed control for pneumatic cylinders or fluid regulation in chemical and hydraulic circuits.
Feature | Specification |
|---|
Model | STB-G1 |
Function | One-way / Bi-directional Flow Control |
Body Material | Stainless Steel (SS304/SS316) |
Port Size | G 1" (Standard Female Thread) |
Adjustment Type | Micrometer Scale Adjustment Knob |
Operating Pressure | 0 – 35 MPa (0 – 5000 psi) |
Operating Medium | Compressed Air, Water, Hydraulic Oil |
Temperature Range | -20°C to +120°C |
Seal Material | FKM (Viton) or NBR |
Max Flow Rate | Variable (Adjustable) |
