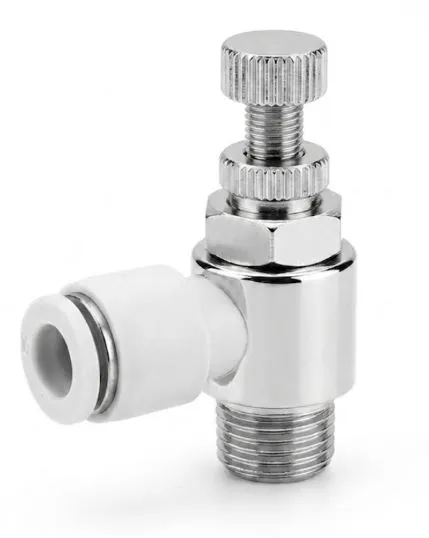

The AIRMIXS SL10-03 Pneumatic Speed Controller is a high-performance right-angle flow control valve engineered to accurately regulate cylinder stroke speed and compressed airflow in industrial automation systems.
Designed for direct installation into pneumatic cylinders, solenoids, or valve manifold blocks with a 3/8" thread port, it connects a 10mm outer-diameter push-in air line. It features a micro-adjustment needle with a knurled locking ring to hold calibrated flow settings under heavy machine operation and vibration. The swivel elbow construction allows flexible 360-degree rotation post-installation for neat and efficient hose routing.
Specification | Value / Technical Detail |
|---|
Model Code | SL10-03 |
Fitting Type | Right-Angle Pneumatic Speed Controller / Flow Control Valve |
Tube Connection Outer Diameter (OD) | 10 mm |
Thread Connection | 3/8" Male Thread (R 3/8 / PT 3/8 / NPT 3/8 / G 3/8) |
Thread Seal Style | Pre-coated Teflon Sealant / Integrated O-ring Seal |
Control Style | Meter-Out / Meter-In Precision Needle Adjustment |
Compatible Media | Compressed Air, Vacuum |
Operating Pressure Range | 0 – 1.0 MPa (0 – 150 PSI / 0 – 10 bar) |
Max / Proof Pressure | 1.32 MPa (190 PSI) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
