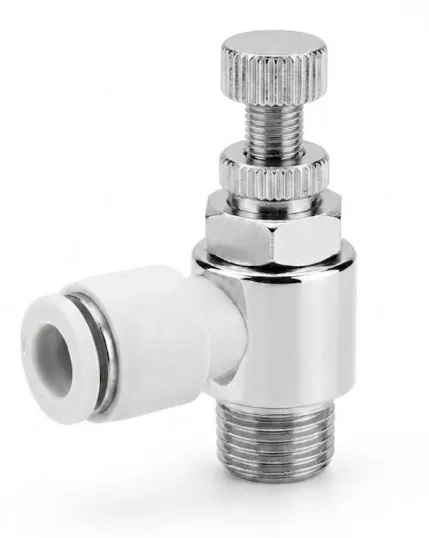

The AIRMIXS SL08-04 Pneumatic Speed Controller is a high-capacity right-angle flow control valve engineered to accurately regulate cylinder stroke speed and compressed airflow in industrial automation equipment.
Designed for direct mounting into pneumatic actuators, solenoids, or valve manifolds with a 1/2" thread port, it connects an 8mm outer-diameter push-in air tube. It features a micro-adjustment needle with a knurled locking ring to hold calibrated settings against machine vibration. The swivel elbow housing enables full 360-degree rotation post-installation for clean, efficient hose routing.
Specification | Value / Technical Detail |
|---|
Model Code | SL08-04 |
Fitting Type | Right-Angle Pneumatic Speed Controller / Flow Control Valve |
Tube Connection Outer Diameter (OD) | 8 mm |
Thread Connection | 1/2" Male Thread (R 1/2 / PT 1/2 / NPT 1/2 / G 1/2) |
Thread Seal Style | Pre-coated Teflon Sealant / Integrated O-ring Seal |
Control Style | Meter-Out / Meter-In Precision Needle Adjustment |
Compatible Media | Compressed Air, Vacuum |
Operating Pressure Range | 0 – 1.0 MPa (0 – 150 PSI / 0 – 10 bar) |
Max / Proof Pressure | 1.32 MPa (190 PSI) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
