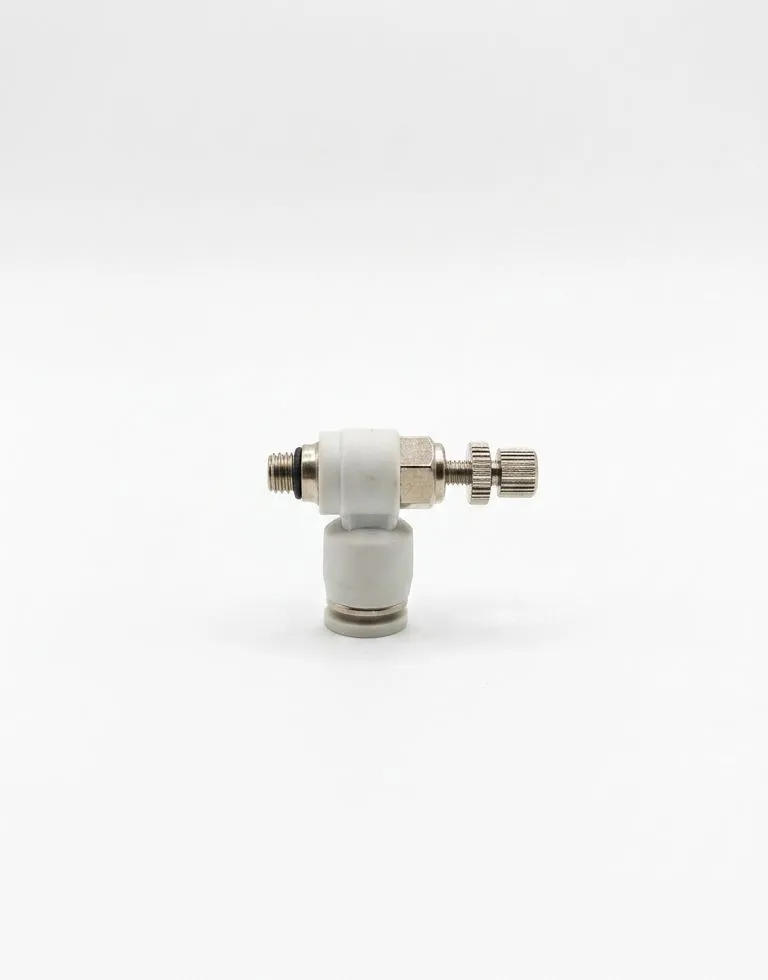

The AIRMIXS SL06-M6 Pneumatic Speed Controller is a precision right-angle flow control valve engineered to regulate cylinder operating speed and airflow rate in compact pneumatic equipment.
Designed for direct mounting into pneumatic actuators, solenoids, or valve blocks with an M6 metric port, it connects a 6mm outer-diameter air tube with a fine-adjustment control needle and locking nut. The body features a swivel elbow construction for easy alignment and routing in tight machinery setups.
Specification | Value / Technical Detail |
|---|
Model Code | SL06-M6 |
Fitting Type | Right-Angle Pneumatic Speed Controller / Flow Control Valve |
Tube Connection Outer Diameter (OD) | 6 mm |
Thread Connection | M6 Metric Male Thread (M6 x 1.0) |
Thread Seal Style | Integrated Rubber O-ring Seal |
Control Style | Meter-Out / Meter-In Precision Needle Adjustment |
Compatible Media | Compressed Air, Vacuum |
Operating Pressure Range | 0 – 1.0 MPa (0 – 150 PSI / 0 – 10 bar) |
Max / Proof Pressure | 1.32 MPa (190 PSI) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
