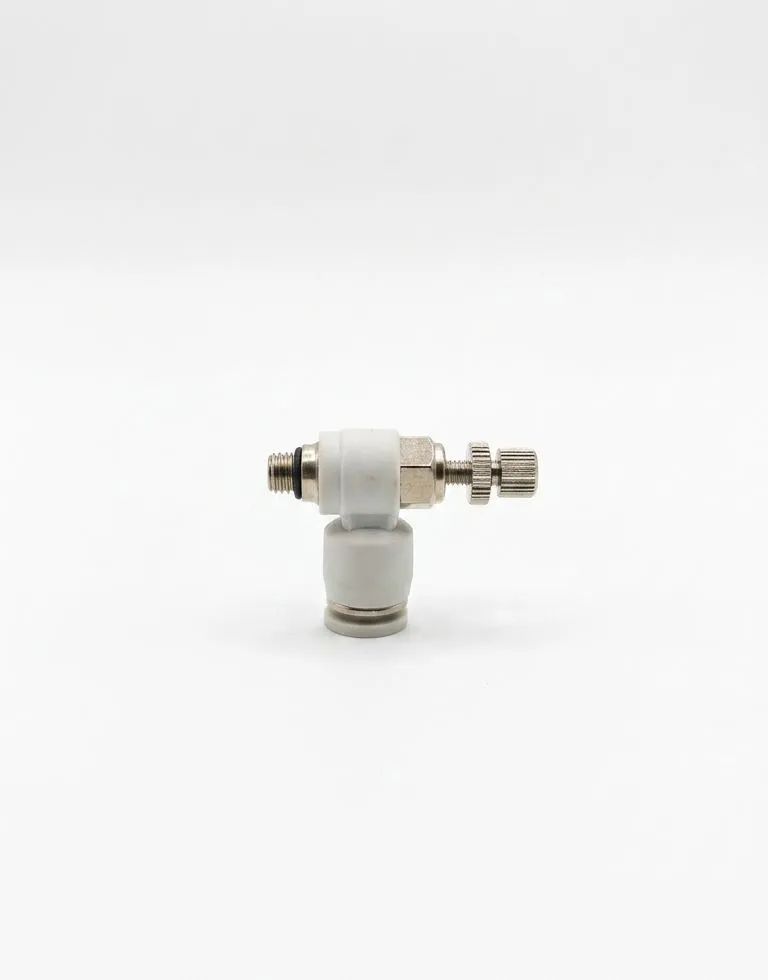

The AIRMIXS SL04-M6 Pneumatic Speed Controller is a precision right-angle flow control valve engineered to regulate cylinder speed and airflow rate in compact pneumatic systems.
Designed for direct mounting onto pneumatic cylinders, valves, or manifold blocks with an M6 metric port, it combines a 4mm push-in tube connection with a fine-adjustment control needle and locking nut. The body features a swivel elbow design for easy alignment and tube routing in tight machinery setups.
Specification | Value / Technical Detail |
|---|
Model Code | SL04-M6 |
Fitting Type | Right-Angle Pneumatic Speed Controller / Flow Control Valve |
Tube Connection Outer Diameter (OD) | 4 mm |
Thread Connection | M6 Metric Male Thread (M6 x 1.0) |
Thread Seal Style | Integrated O-ring Seal |
Control Style | Meter-Out / Meter-In Precision Needle Adjustment |
Compatible Media | Compressed Air, Vacuum |
Operating Pressure Range | 0 – 1.0 MPa (0 – 150 PSI / 0 – 10 bar) |
Max / Proof Pressure | 1.32 MPa (190 PSI) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
