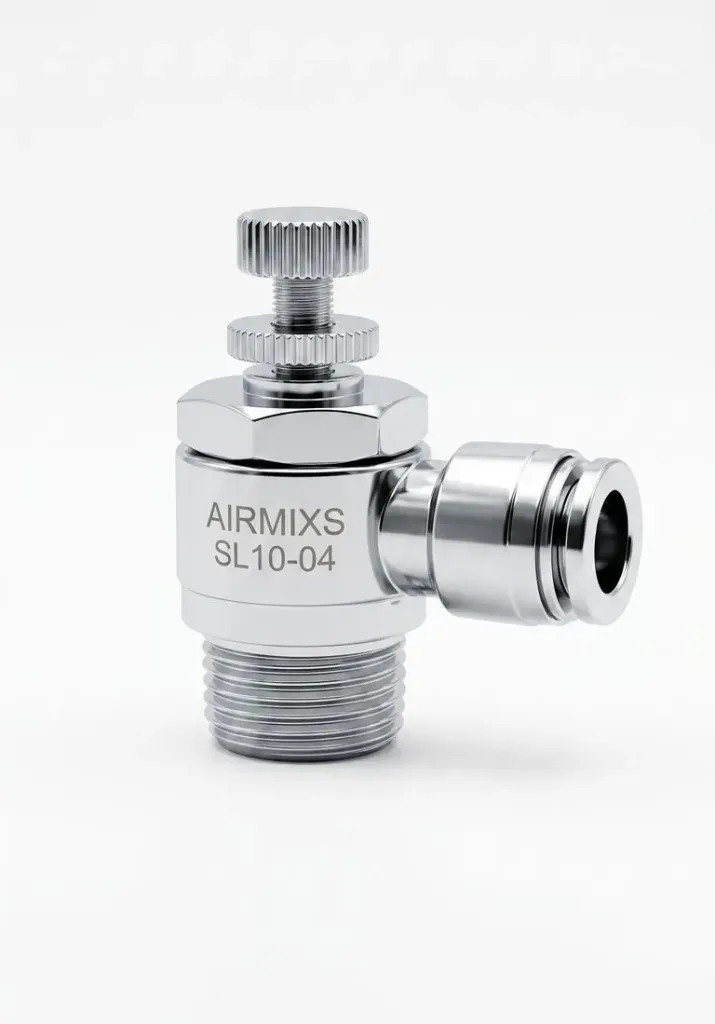

The AIRMIXS SL 10-04 is a heavy-duty pneumatic speed controller engineered for high-capacity air distribution and precise actuator regulation. This elbow-style valve features a 10mm push-to-connect port and a large 1/2" BSP male thread, making it the ideal choice for high-flow systems where 10mm tubing must be interfaced with large-diameter cylinder ports or main supply manifolds. The integrated knurled adjustment needle provides linear flow control, allowing operators to fine-tune the exhaust airflow (meter-out) to ensure smooth, stabilized piston movement in heavy-load industrial machinery.
The SL 10-04 is constructed with a reinforced swivel-style PBT body, allowing the 10mm tube connection to rotate 360 degrees even after the 1/2" base is fully tightened. This flexibility is critical for managing large-diameter tubing in complex machine layouts without causing stress on the connection points. With its pre-coated threads and robust stainless steel internals, this speed controller is built for maximum reliability in high-output automation, heavy manufacturing, and large-scale pneumatic circuits.
Feature | Specification |
|---|
Model Number | SL 10-04 |
Tube Outer Diameter | 10 mm |
Thread Type | R 1/2" (BSP) |
Control Type | Meter-Out (Standard for actuator speed control) |
Fluid Type | Compressed Air |
Operating Pressure | 0.1 to 1.0 MPa (15 to 150 psi) |
Negative Pressure | -100 kPa (-29.5 in Hg) |
Proof Pressure | 1.5 MPa (217 psi) |
Temperature Range | 0 to 60°C (32 to 140°F) |
