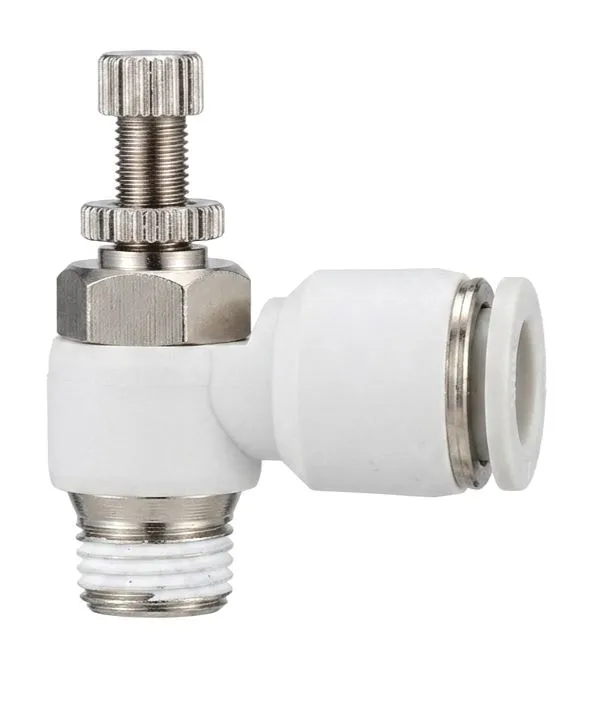

The AIRMIXS SL 10-02 is a high-precision pneumatic speed controller designed to regulate the operating speed of air cylinders and actuators with professional accuracy. This elbow-style valve features a 10mm push-to-connect port and a 1/4" BSP male thread, which is the industry-standard size for medium-to-large scale pneumatic actuators. The integrated knurled adjustment needle allows operators to fine-tune the exhaust airflow (meter-out), ensuring smooth, consistent piston movement and preventing sudden surges or "jumping" in automated machinery.
Constructed with a swivel-style PBT body, the SL 10-02 allows the tube orientation to be adjusted 360 degrees after the fitting has been tightened into the port, making it ideal for compact machine layouts and complex pneumatic circuits. The pre-coated threads and high-quality stainless steel internals ensure a long service life and high reliability in demanding industrial environments. It is a critical component for high-speed packaging lines, material handling systems, and any pneumatic application requiring stable motion control for 10mm lines.
Feature | Specification |
|---|
Model Number | SL 10-02 |
Tube Outer Diameter | 10 mm |
Thread Type | R 1/4" (BSP) |
Control Type | Meter-Out (Standard for actuator speed control) |
Fluid Type | Compressed Air |
Operating Pressure | 0.1 to 1.0 MPa (15 to 150 psi) |
Negative Pressure | -100 kPa (-29.5 in Hg) |
Proof Pressure | 1.5 MPa (217 psi) |
Temperature Range | 0 to 60°C (32 to 140°F) |
