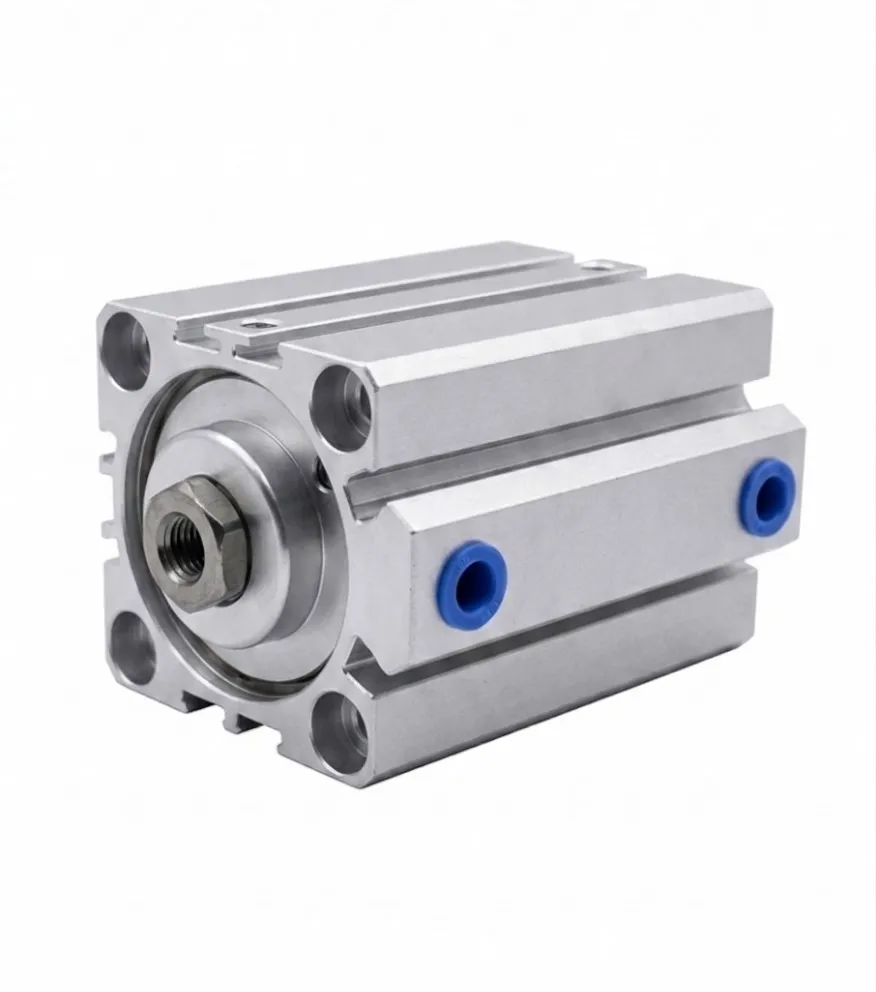

The AIRMIXS SDA50-25-Sis a space-saving compact pneumatic cylinder designed for high-force linear motion in space-constrained automation systems. Featuring a 50mm bore diameter and a 25mm stroke length, this double-acting cylinder delivers smooth, powerful actuation in both extend and retract operations.
Equipped with an integrated magnetic piston ring ("S" suffix), it supports direct pairing with magnetic proximity sensors for precise positional feedback. Designed with female piston rod threads, side mounting slots, and dual rubber bumper cushioning, it is ideal for automated clamping, lifting, pushing, and stopping applications across factory automation equipment.
| Parameter | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | SDA50-25-S (SDA50x25S) |
Cylinder Type | Compact Pneumatic Cylinder |
Action Type | Double Acting |
Bore Size | 50 mm |
Stroke Length | 25 mm |
Magnetic Ring (Sensor Built-in) | Yes ("S" Type) |
Fluid / Medium | Compressed Air (Filtered 40 µm) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10 bar / 22 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar / 217 PSI) |
Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
Operating Speed Range | 30 to 500 mm/s |
Piston Rod Thread | Female Thread (M10×1.5 standard) |
Port Size | PT 1/4" |
Cushioning | Rubber Bumper at both ends |
