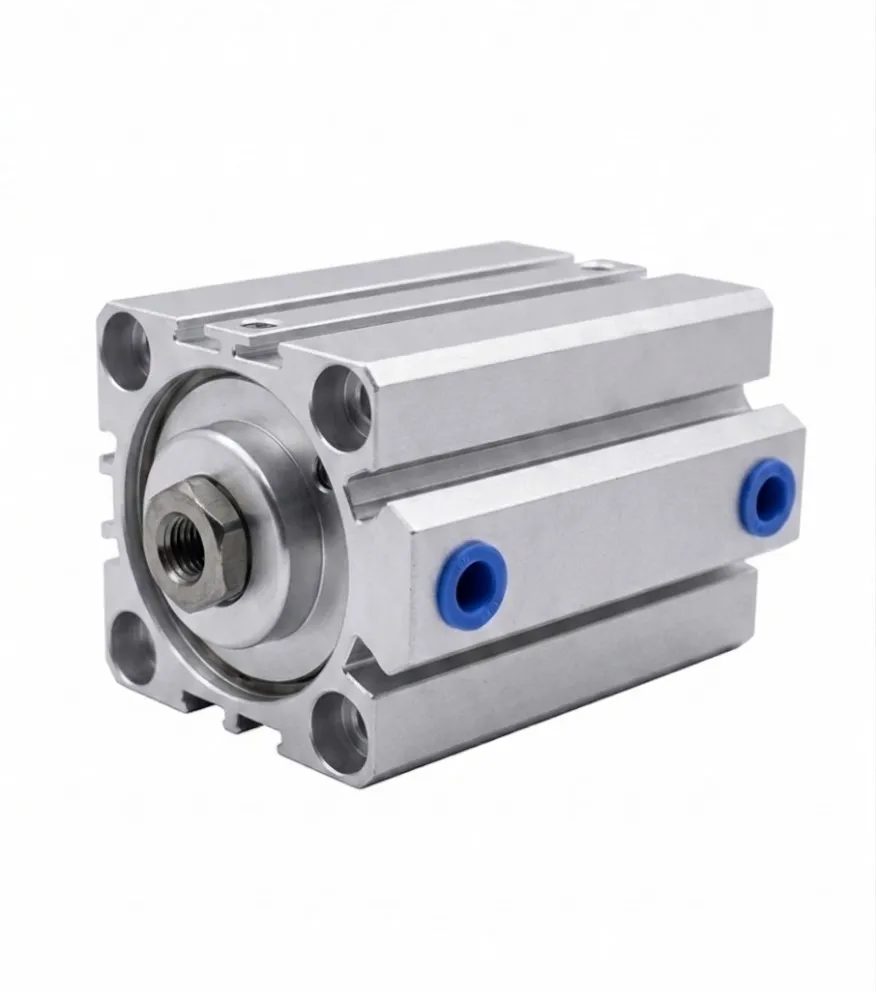

The AIRMIXS SDA50-20-Sis a space-saving compact pneumatic air cylinder engineered for robust linear actuation in confined industrial spaces. Combining a 50mm bore diameter with a 20mm stroke length, this double-acting cylinder provides dependable force output and precise motion control in both directions.
Equipped with an integrated magnetic piston ring ("S" designation), it allows effortless pairing with external proximity sensors for real-time stroke position detection. Designed with dual rubber bumper cushioning, female rod threading, and integrated side mounting slots, it is built for high performance in clamping, pushing, lifting, and stopping mechanisms across factory automation lines.
| Parameter | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | SDA50-20-S (SDA50x20S) |
Cylinder Type | Compact Pneumatic Cylinder |
Action Type | Double Acting |
Bore Size | 50 mm |
Stroke Length | 20 mm |
Magnetic Ring (Sensor Built-in) | Yes ("S" Type) |
Fluid / Medium | Compressed Air (Filtered 40 µm) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10 bar / 22 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar / 217 PSI) |
Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
Operating Speed Range | 30 to 500 mm/s |
Piston Rod Thread | Female Thread (M10×1.5 standard) |
Port Size | PT 1/4" |
Cushioning | Rubber Bumper at both ends |
