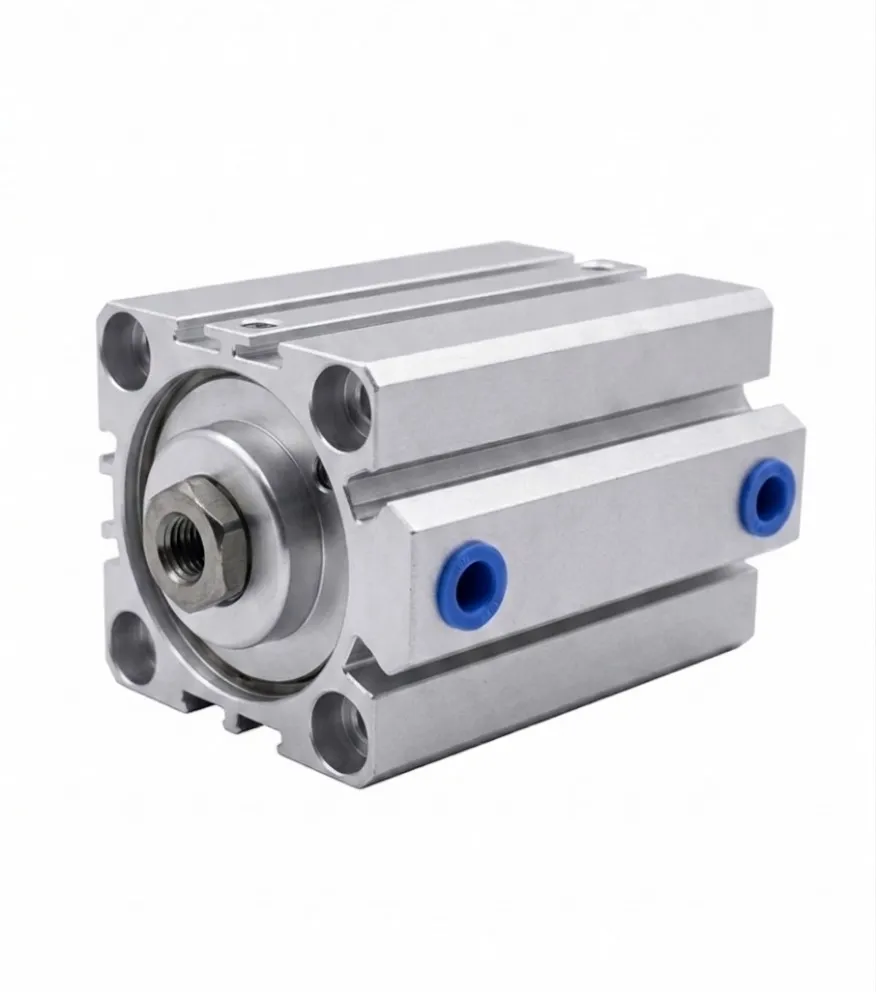

The AIRMIXS SDA50-05-Sis a powerful ultra-short stroke compact pneumatic cylinder designed for applications requiring high thrust force within an exceptionally tight footprint. Featuring a 50mm bore diameter and a 5mm stroke length, this double-acting cylinder delivers immediate, reliable linear force control in automated production systems.
Equipped with an integrated magnetic piston ring ("S" suffix), it supports seamless integration with external magnetic sensors for automated position verification. Designed with dual rubber bumper cushioning, female rod threads, and side mounting slots, it is ideal for high-force short-stroke clamping, positioning, stopping, and pressing operations in packaging and factory automation equipment.
| Parameter | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | SDA50-05-S (SDA50x5S) |
Cylinder Type | Compact Pneumatic Cylinder |
Action Type | Double Acting |
Bore Size | 50 mm |
Stroke Length | 5 mm |
Magnetic Ring (Sensor Built-in) | Yes ("S" Type) |
Fluid / Medium | Compressed Air (Filtered 40 µm) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10 bar / 22 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar / 217 PSI) |
Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
Operating Speed Range | 30 to 500 mm/s |
Piston Rod Thread | Female Thread (M10×1.5 standard) |
Port Size | PT 1/4" |
Cushioning | Rubber Bumper at both ends |
