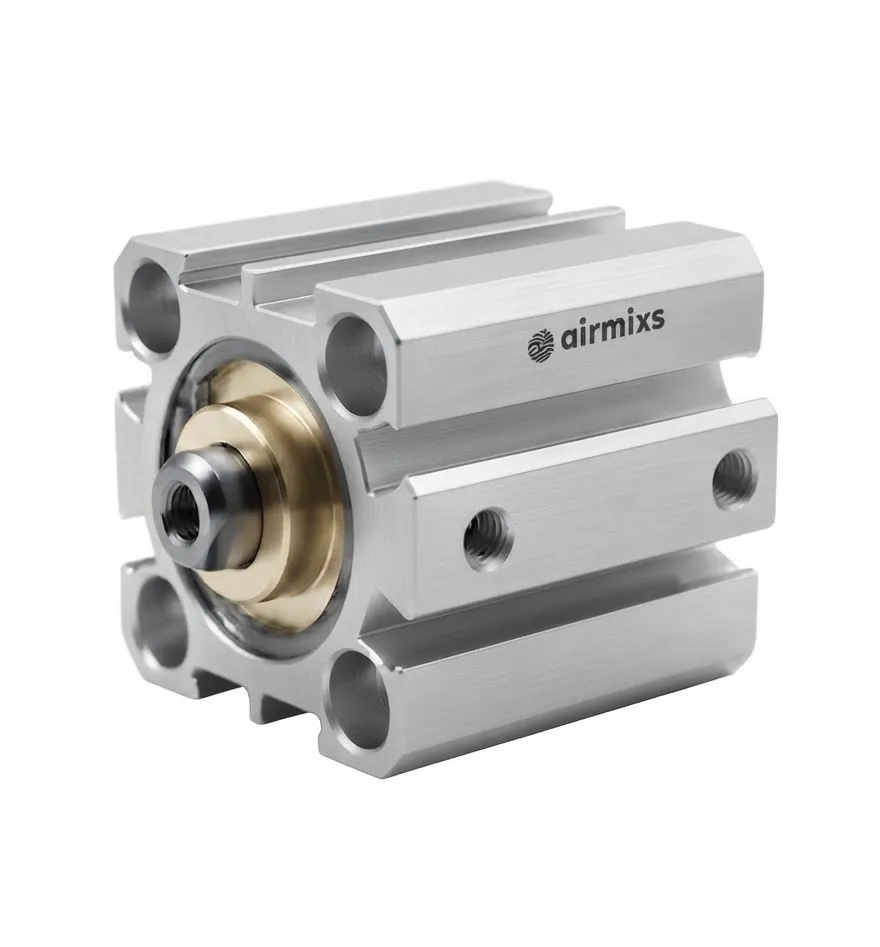

The AIRMIXS SDA40-20 is a heavy-duty, double-acting compact pneumatic cylinder engineered to provide higher output force in applications with limited installation space. Featuring a low-profile, rugged anodized aluminum body, it delivers exceptional wear resistance and dependable linear actuation. Integrated rubber bumpers absorb end-of-stroke impact forces for smoother and quieter performance, while built-in magnetic slots allow for quick and secure sensor switch installation.
Specification Parameter | Details |
|---|
Brand | AIRMIXS |
Model / Part Number | SDA40-20 |
Bore Size | 40 mm |
Stroke Length | 20 mm |
Acting Type | Double Acting |
Fluid / Working Medium | Compressed Air (filtered to 40 µm) |
Operating Pressure Range | 0.1 to 0.7 MPa |
Proof Pressure | 1.05 MPa (150 psi) |
Operating Temperature | -10°C to +60°C |
Operating Speed Range | 30 to 500 mm/s |
Port Size | G1/8 |
Buffer Type | Rubber Bumper / Cushion |
Piston Rod Configuration | Female Thread |
