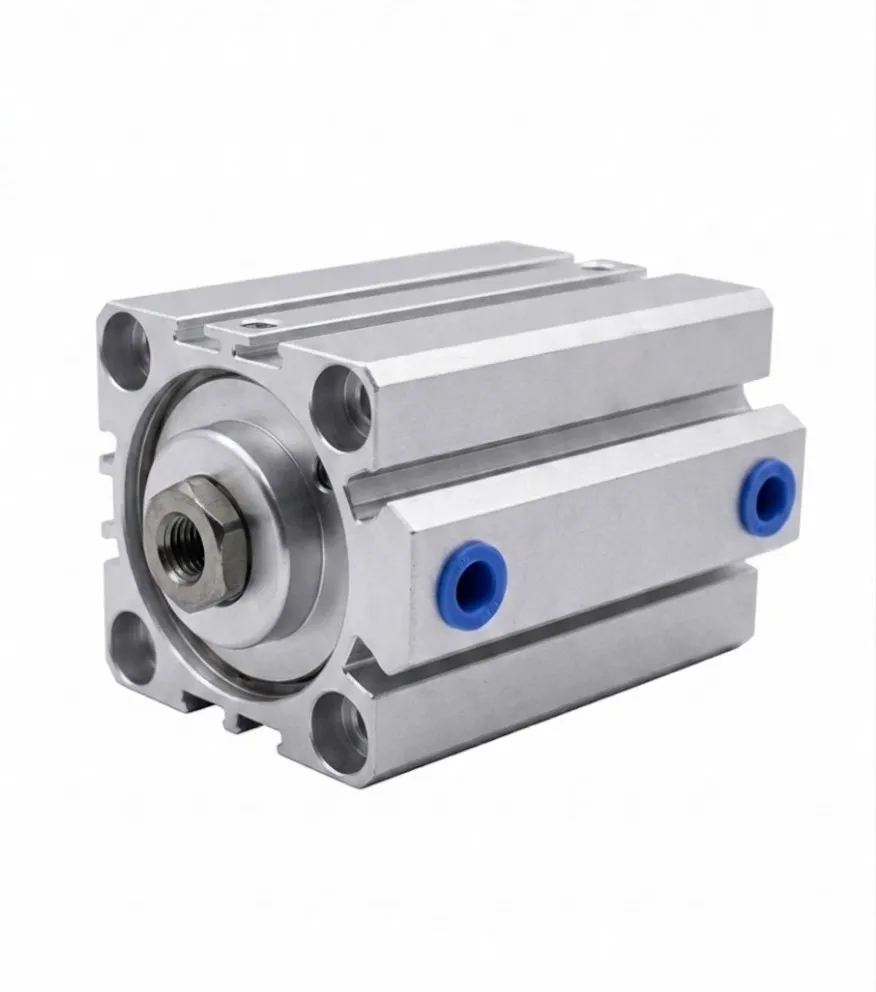

The AIRMIXS SDA32-20-S is a space-saving compact pneumatic cylinder designed for precise, efficient linear actuation in automated equipment. With a 32mm bore diameter and a 20mm stroke length, this double-acting cylinder delivers reliable dual-direction motion across a variety of industrial automation setups.
Featuring an integrated magnetic piston ring ("S" designation), it allows straightforward integration with external magnetic proximity sensors for real-time stroke position feedback. Engineered with dual rubber bumper cushioning, female rod threading, and side mounting grooves, it is built for long service life in clamping, stopping, lifting, and sorting mechanisms.
| Parameter | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | SDA32-20-S (SDA32x20S) |
Cylinder Type | Compact Pneumatic Cylinder |
Action Type | Double Acting |
Bore Size | 32 mm |
Stroke Length | 20 mm |
Magnetic Ring (Sensor Built-in) | Yes ("S" Type) |
Fluid / Medium | Compressed Air (Filtered 40 µm) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10 bar / 22 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar / 217 PSI) |
Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
Operating Speed Range | 30 to 500 mm/s |
Piston Rod Thread | Female Thread (M6×1.0 standard) |
Port Size | PT 1/8" |
Cushioning | Rubber Bumper at both ends |
