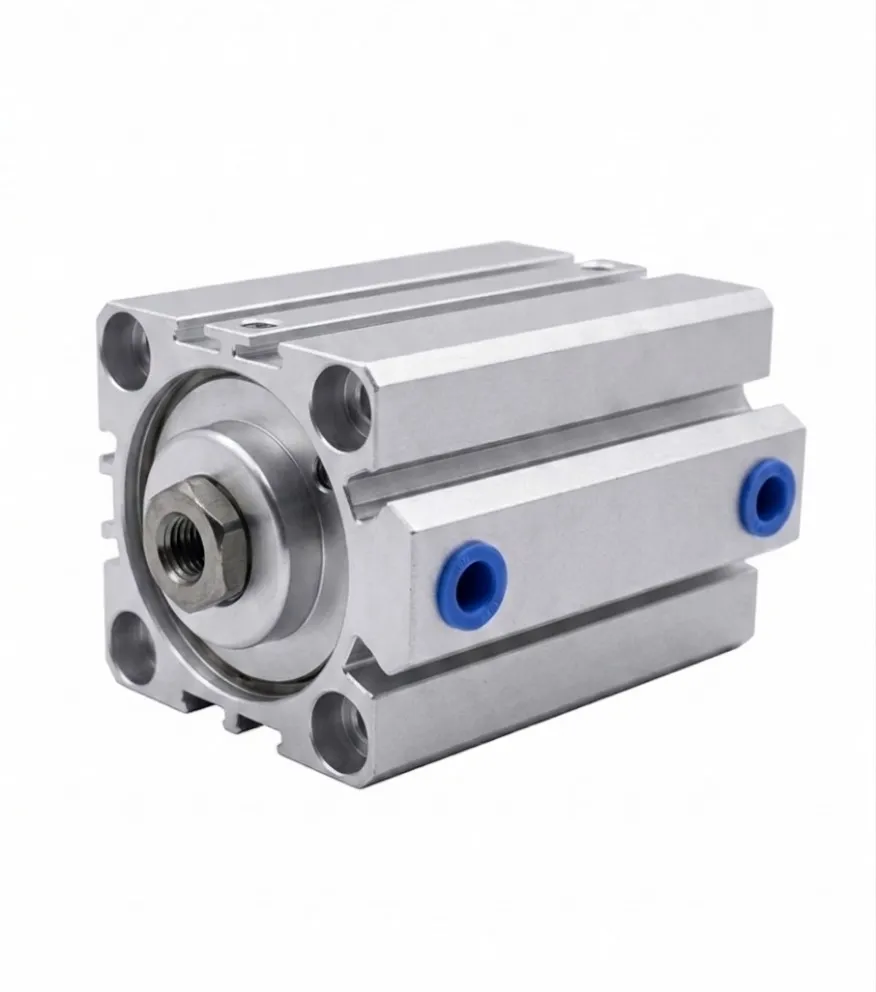

The AIRMIXS SDA32-10-S is a space-saving, high-performance compact pneumatic air cylinder designed for short-stroke automation applications. Featuring a 32mm bore size and a 10mm stroke length, this double-acting cylinder delivers reliable linear push/pull motion in tight assembly environments.
Equipped with a built-in magnetic ring ("S" suffix), it allows seamless integration with external magnetic reed sensors for precise positional feedback. Its durable body construction, dual rubber bumper cushioning, and integrated sensor slots make it an ideal choice for factory automation, clamping, lifting, and pneumatic press mechanisms.
| Parameter | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | SDA32-10-S (SDA32x10S) |
Cylinder Type | Compact Pneumatic Cylinder |
Action Type | Double Acting |
Bore Size | 32 mm |
Stroke Length | 10 mm |
Magnetic Ring (Sensor Built-in) | Yes ("S" Type) |
Fluid / Medium | Compressed Air (Filtered 40 µm) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10 bar / 22 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar / 217 PSI) |
Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
Operating Speed Range | 30 to 500 mm/s |
Piston Rod Thread | Female Thread (M6×1.0 standard) |
Port Size | PT 1/8" |
Cushioning | Rubber Bumper at both ends |
