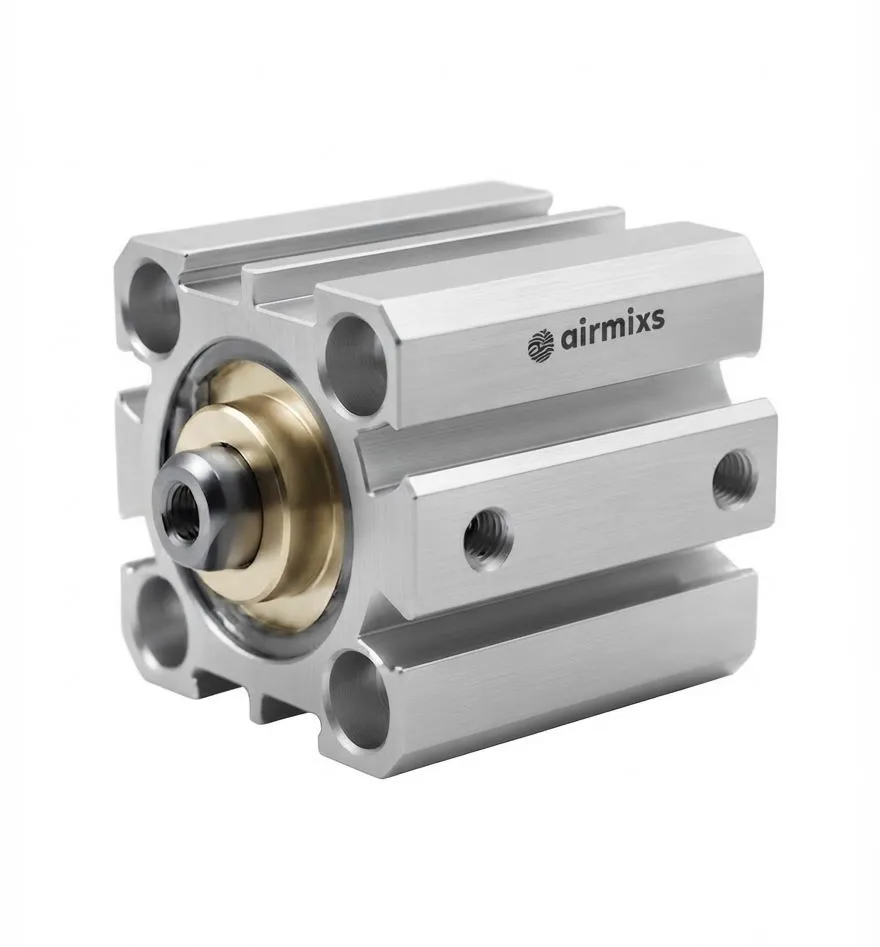

The AIRMIXS SDA25-20 is a precision-engineered, double-acting compact pneumatic cylinder built for high-density automation setups where mounting space is limited. Featuring a compact thin-profile body made from durable anodized aluminum, it offers reliable performance, corrosion resistance, and smooth linear motion. Integrated rubber cushions minimize impact shock at the end of strokes, while built-in magnetic slots allow for easy sensor attachment.
Specification Parameter | Details |
|---|
Brand | AIRMIXS |
Model / Part Number | SDA25-20 |
Bore Size | 25 mm |
Stroke Length | 20 mm |
Acting Type | Double Acting |
Fluid / Working Medium | Compressed Air (filtered to 40 µm) |
Operating Pressure Range | 0.1 to 0.7 MPa |
Proof Pressure | 1.05 MPa (150 psi) |
Operating Temperature | -10°C to +60°C |
Operating Speed Range | 30 to 500 mm/s |
Port Size | M5 x 0.8 |
Buffer Type | Rubber Bumper / Cushion |
Piston Rod Configuration | Female Thread |
