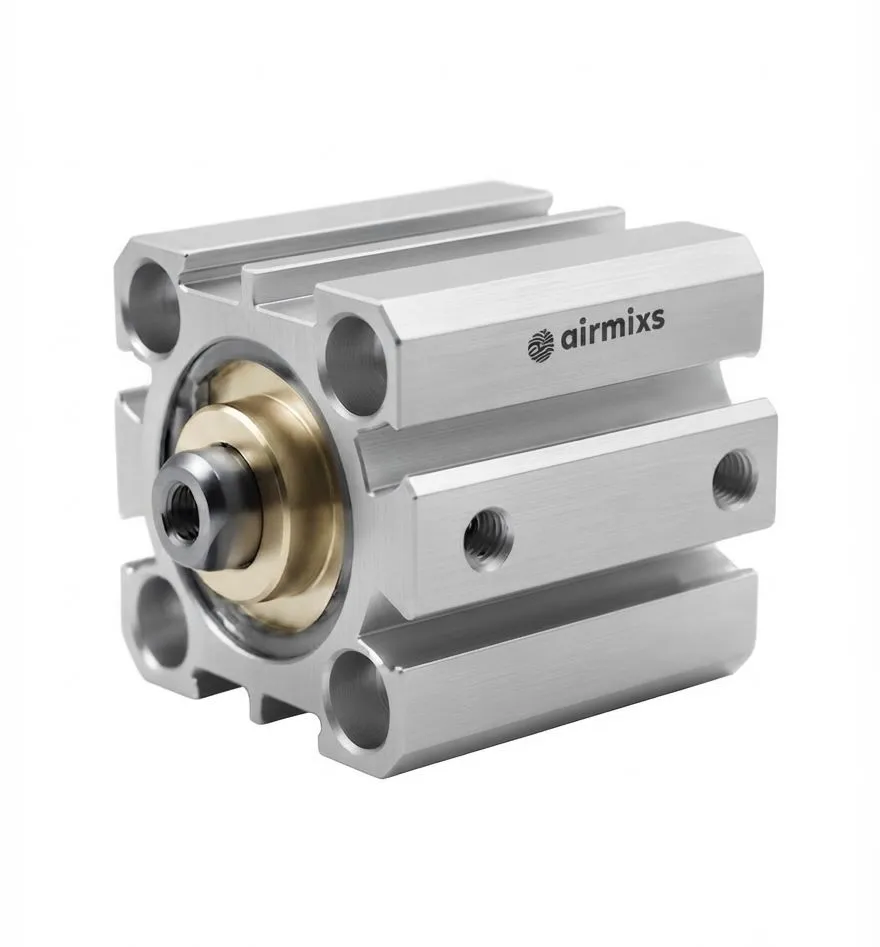

The AIRMIXS SDA25-05 is a high-performance, double-acting compact pneumatic cylinder designed for applications requiring space-saving efficiency and reliable linear motion. Built with a durable anodized aluminum body and a space-saving thin profile, this cylinder integrates easily into automated systems and tight workspaces. It features a robust two-way piston seal structure with integrated oil reservation capabilities to ensure long service life and smooth operation. Standard magnetic slots are built around the body for effortless sensor switch installation.
Specification Parameter | Details |
|---|
Brand | AIRMIXS |
Model / Part Number | SDA25-05 |
Bore Size | 25 mm |
Stroke Length | 5 mm |
Acting Type | Double Acting |
Fluid / Working Medium | Air (filtered through a 40µm or cleaner element) |
Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10.0 bar / 22 to 145 psi) |
Proof Pressure | 1.5 MPa (215 psi / 15 bar) |
Operating Temperature | -20°C to +70°C |
Operating Speed Range | 30 to 500 mm/s |
Port Size | M5 x 0.8 |
Buffer Type | Bumper / Anti-collision pad |
Piston Rod Thread Type | Female Thread (Standard) |
Body Material | Hard Anodized Aluminum Alloy |
