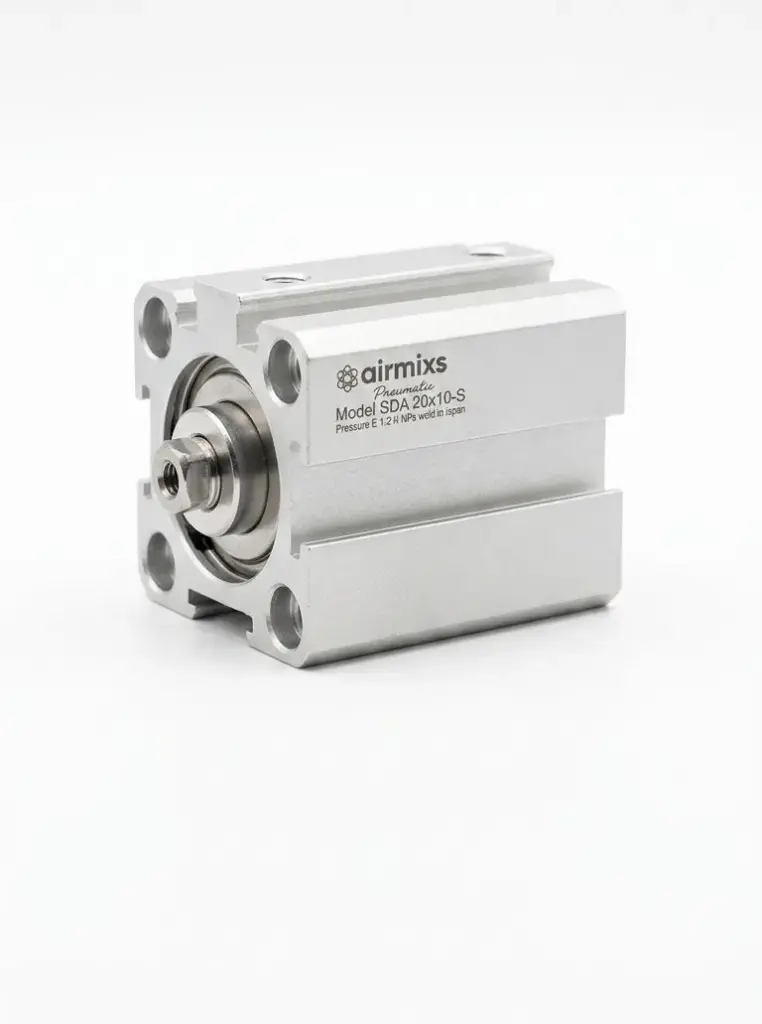

The SDA 20-10-S is a precision-engineered, ultra-compact pneumatic cylinder designed for high-efficiency automation where space is a premium. It features a hard-anodized aluminum body that ensures high durability and resistance to corrosion. The "S" designation indicates the inclusion of a magnetic ring on the piston, allowing for position sensing via magnetic switches. With a 20mm bore and a 10mm stroke, this double-acting cylinder provides reliable performance for short-stroke, high-speed clamping and ejection tasks.
Feature | Details |
|---|
Model | SDA 20-10-S |
Bore Size | 20 mm |
Stroke Length | 10 mm |
Action Type | Double Acting |
Magnetic Sensor | Built-in Magnetic Ring (Sensor Compatible) |
Fluid | Clean, Filtered Compressed Air |
Operating Pressure | 0.1 – 1.0 MPa (14.5 – 145 psi) |
Operating Temp. | -20°C to +70°C |
Port Size | M5 x 0.8 |
Piston Rod Thread | M5 x 0.8 Female Thread |
Body Material | High-Grade Aluminum Alloy |
