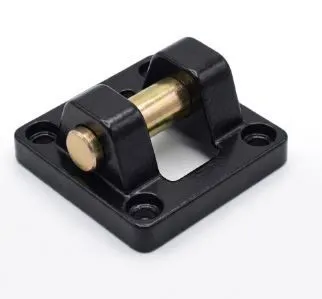

The AIRMIXS SC80-CB is a heavy-duty, high-output double-acting pneumatic tie-rod cylinder designed for heavy industrial automation, pressing, clamping, and material handling applications. Featuring a large 80mm bore size and a factory-fitted Rear Clevis (CB) mounting bracket, this cylinder provides high linear pushing and pulling power while allowing flexible swiveling and angular pivoting motions for articulated machinery and linkage levers.
Engineered with a heavy-walled anodized aluminum cylinder barrel, high-tensile chrome-plated steel piston rod, and dual adjustable end-of-stroke pneumatic cushions, the SC80-CB delivers smooth stroke deceleration, reduced end-of-stroke impact, and long-term operating durability under severe operating conditions. Its structural four-tie-rod construction ensures maximum frame rigidity while allowing simple attachment of magnetic proximity sensors without requiring continuous oil lubrication.
Technical Parameter | Specification |
|---|
Model / Part Number | SC80-CB Series |
Brand | AIRMIXS |
Cylinder Type | Standard Tie-Rod Pneumatic Cylinder |
Action Type | Double Acting |
Bore Size | 80 mm |
Mounting Style | Rear Clevis (CB Type Bracket) |
Cushioning | Adjustable Air Cushion at Both Ends |
Working Medium | Compressed Air (Filtered $\le$40 µm) |
Port Size | G 3/8" |
Operating Pressure Range | 0.1 to 1.0 MPa (1.0 to 10.0 bar / 14 to 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar / 217 PSI) |
Piston Speed Range | 30 to 800 mm/sec |
Operating Temperature Range | -20°C to +80°C |
Lubrication | Not required |
