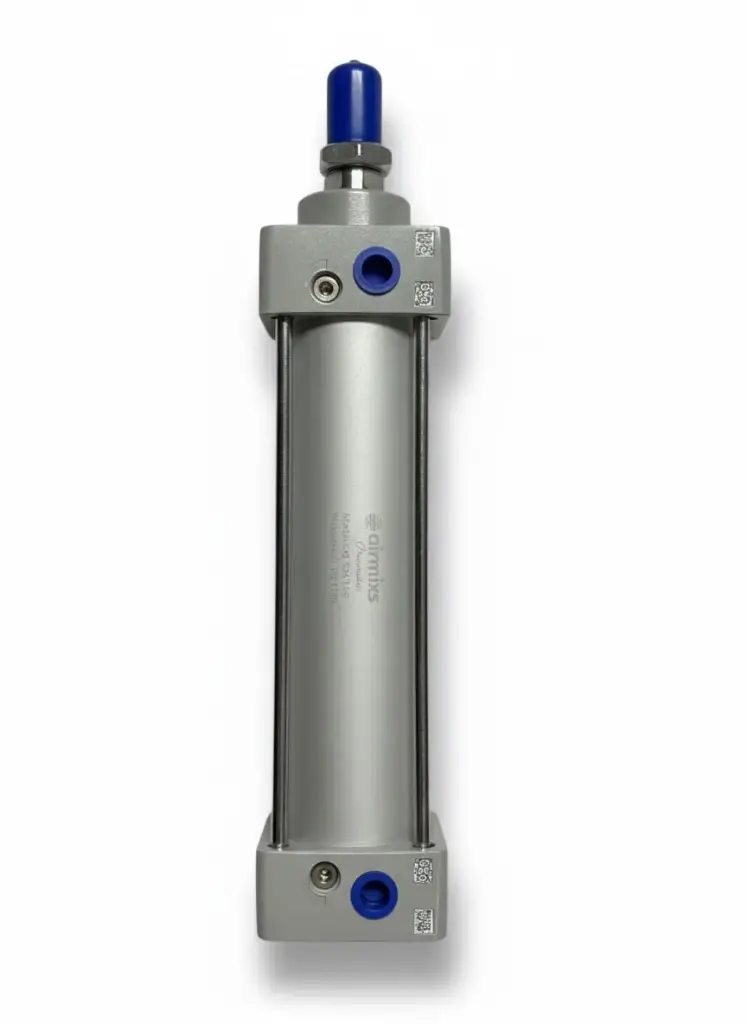

The AIRMIXS SC50X125 is a robust, tie-rod style pneumatic cylinder engineered for high-force industrial applications. With a significant 50mm bore and a 125mm stroke, this double-acting actuator is designed to handle demanding linear motion tasks, such as heavy-material lifting, industrial pressing, and large-scale gate automation.
Part of the premium SC series, it features a high-tensile aluminum alloy barrel and four reinforced steel tie rods for maximum structural rigidity. The cylinder is equipped with adjustable air cushioning at both ends, allowing operators to control the deceleration of the piston, which minimizes mechanical shock and significantly extends the service life of the machinery.
Feature | Specification |
|---|
Model | SC50X125 |
Brand | AIRMIXS |
Bore Size | 50 mm |
Stroke Length | 125 mm |
Action Type | Double Acting |
Working Medium | 40 $\mu$m Filtered Compressed Air |
Operating Pressure | 0.1 ~ 0.9 MPa (14.5 ~ 130 PSI) |
Proof Pressure | 1.35 MPa (195 PSI) |
Operating Velocity | 50 ~ 800 mm/s |
Cushion Type | Adjustable Air Cushion (Both ends) |
Port Size | G 1/4" |
Piston Rod Thread | M14 x 1.5 |
Body Material | Aluminum Alloy |
Piston Rod Material | Hard-Chrome Plated Carbon Steel |
