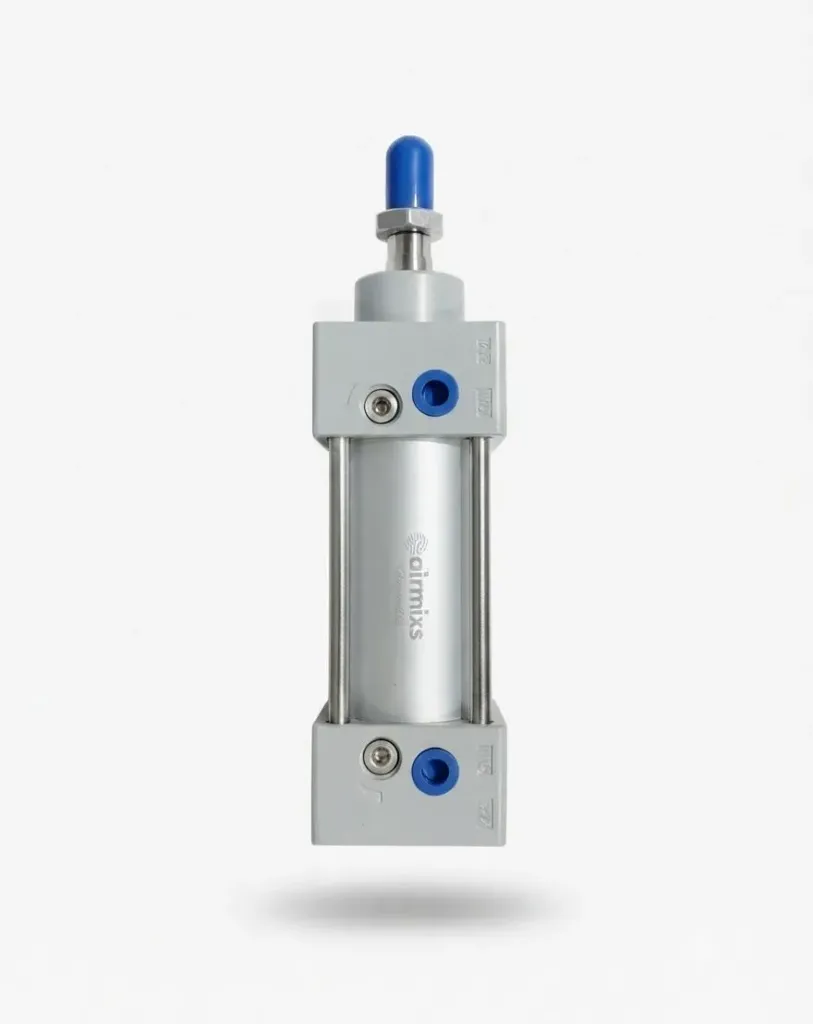

The AIRMIXS SC50-25 is a compact, high-capacity double-acting standard pneumatic cylinder engineered for heavy clamping, pressing, and short-stroke positioning in industrial automation lines. Featuring a substantial 50mm bore size paired with a space-saving 25mm stroke length, this cylinder delivers heavy thrust force within tight installation spaces. Its rugged tie-rod configuration and hard-anodized aluminum barrel ensure excellent structural strength, high durability, and reliable corrosion resistance under demanding operational cycles.
Technical Feature | Specification Details |
|---|
Brand Name | AIRMIXS |
Part Number / Model | SC50-25 |
Bore Size | 50 mm |
Stroke Length | 25 mm |
Acting Type | Double Acting |
Working Fluid | Filtered Compressed Air (40μm filter element) |
Operating Pressure Range | 0.15 – 1.0 MPa (21 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Port Size | G 1/4" BSPP (PT / NPT options available) |
Piston Rod Thread | M16 × 1.5 |
Operating Speed Range | 30 – 800 mm/s |
Cushion Type | Adjustable Air Cushion (Both Ends) |
Temperature Range | -20°C to +70°C |
Body Material | Hard-Anodized Aluminum Alloy Barrel & Tie-Rods |
