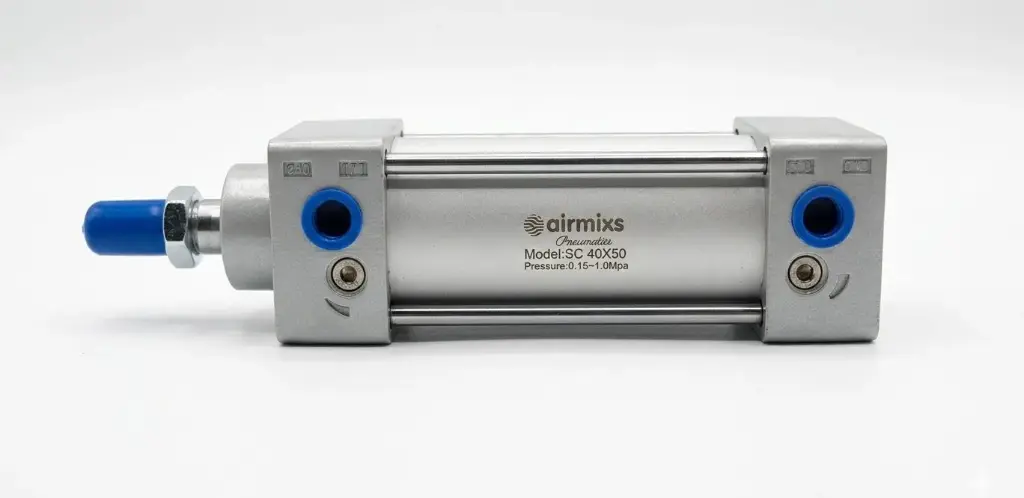

The AIRMIXS SC40X50 is a double-acting, tie-rod pneumatic cylinder designed for high reliability in industrial automation.It is a standard-type cylinder characterized by its compact design, making it shorter than many ISO15552 standard cylinders with the same bore size. The AIRMIXS SC series is a robust tie-rod cylinder engineered for diverse mechanical movements in industrial sectors like automotive and general manufacturing.Its construction uses high-grade aluminum for the barrel, providing excellent corrosion resistance and strength.
Specification | Details |
|---|
Model | SC40X50 |
Action Type | Double Acting |
Bore Size | 40mm |
Stroke Length | 50mm |
Fluid | Air (filtered by 40µm filter element) |
Operating Pressure | 0.15 ~ 1.0 MPa (22~145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Operating Temperature | -20°C to 70°C (Standard); up to 150°C with high-temp seals |
Speed Range | 30 ~ 800 mm/s |
Cushion Type | Adjustable air buffer at both ends |
Port Size | 1/4" (PT, G, or NPT thread available) |
Materials | Aluminum alloy barrel; Chrome-plated carbon steel piston rod |
