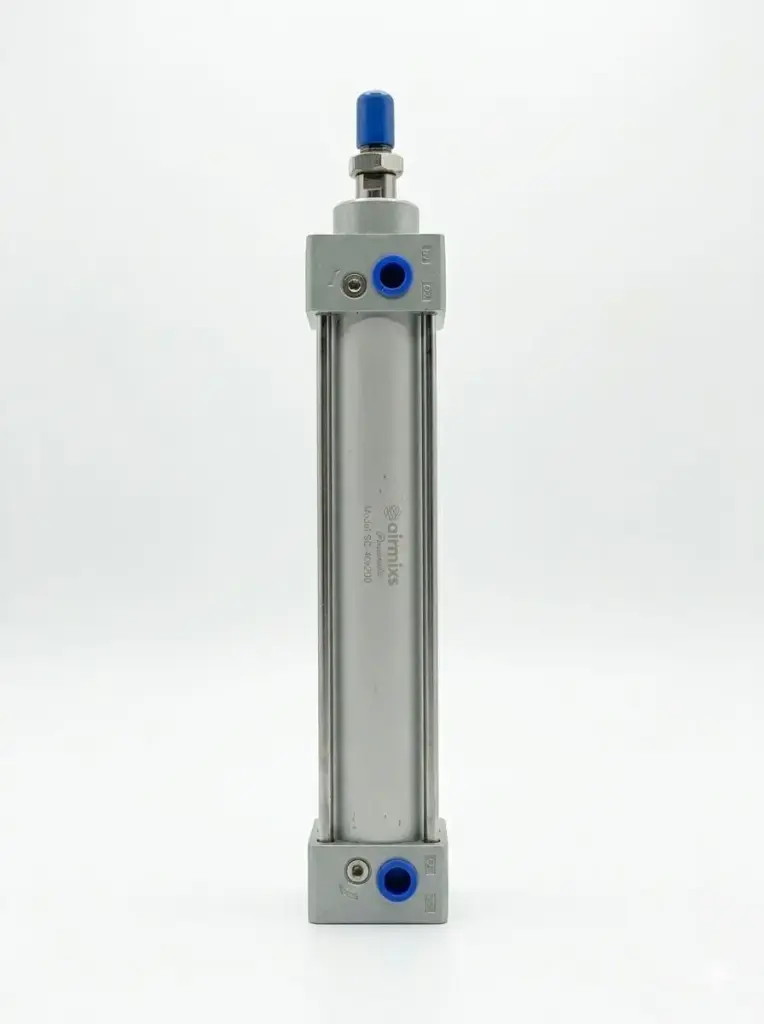

The AIRMIXS SC40X150 is a high-performance standard tie-rod pneumatic cylinder designed to deliver stable and powerful linear motion in industrial automation systems. This double-acting cylinder features a 40mm bore and a 150mm stroke, utilizing compressed air to provide force in both the extension and retraction directions.
The SC Series is engineered with a robust four tie-rod construction that enhances structural strength and improves load resistance for long-term durability. The cylinder body is crafted from high-quality aluminum alloy, while the piston rod is typically hard-chromed to reduce friction and resist wear. For smooth operation and reduced noise, the unit is equipped with adjustable air buffers at both ends of the stroke.
Feature | Specification |
|---|
Model | SC40X150 |
Brand | AIRMIXS |
Bore Size | 40 mm |
Stroke Length | 150 mm |
Acting Type | Double Acting |
Medium | Compressed Air (Filtered to 40$\mu$m) |
Operating Pressure | 0.15 – 1.0 MPa (1.5 – 10 bar / 22 – 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar / 215 PSI) |
Operating Speed | 30 – 800 mm/s |
Operating Temp. | -20°C to 70°C (up to 150°C with high-temp seals) |
Port Size | G 1/4" |
Cushion Type | Adjustable Air Cushion |
