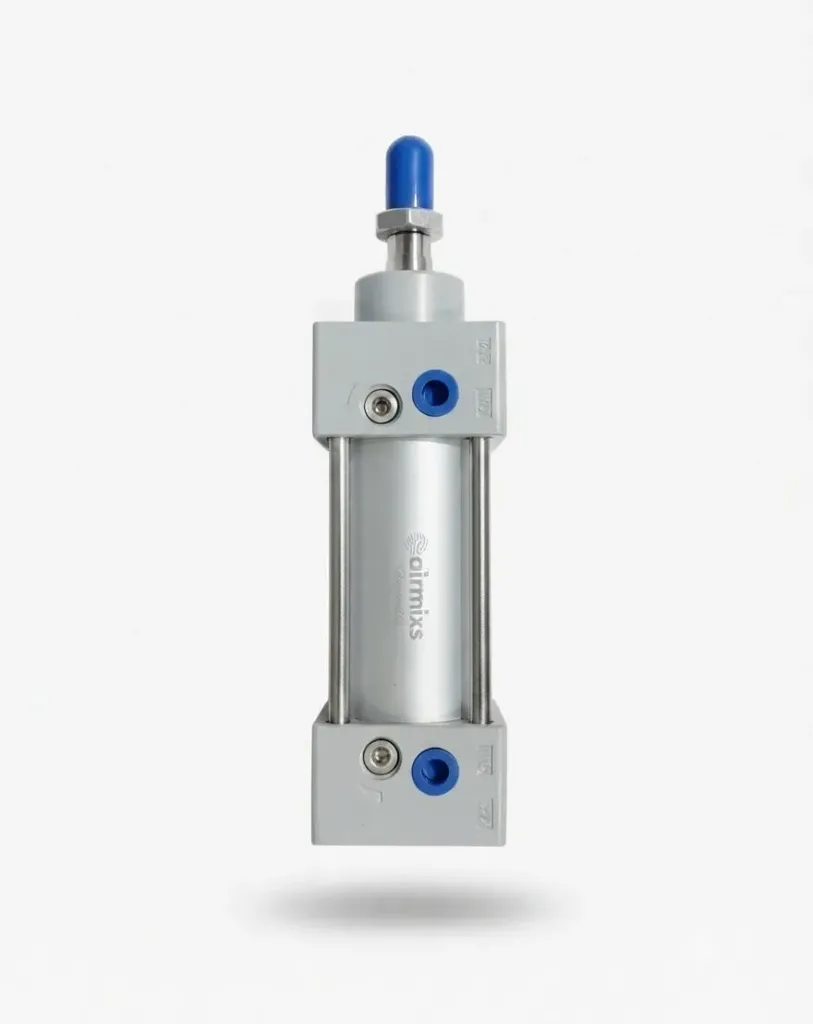

The AIRMIXS SC40-350is a long-reach, double-acting standard pneumatic cylinder engineered for industrial automation tasks requiring extended linear travel.Featuring a robust 40mm bore combined with a 350mm stroke length, this unit provides dependable, high-force linear motion for heavy pushing, pulling, and transfer mechanisms.Built with a durable tie-rod framework and a corrosion-resistant hard-anodized aluminum body, it guarantees exceptional mechanical strength and long operational longevity under demanding factory conditions.
Technical Feature | Specification Details |
|---|
Brand Name | AIRMIXS |
Part Number / Model | SC40-350 |
Bore Size | 40 mm |
Stroke Length | 350 mm |
Acting Type | Double Acting |
Working Fluid | Compressed Air (Filtered through 40µm element) |
Operating Pressure Range | 0.15 – 1.0 MPa (21 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Port Size | PT 1/4" |
Piston Rod Thread | M12 × 1.25 |
Operating Speed Range | 30 – 800 mm/s |
Cushion Type | Adjustable Cushion |
Temperature Range | -20°C to +70°C |
Body Material | Hard-Anodized Aluminum Alloy |
