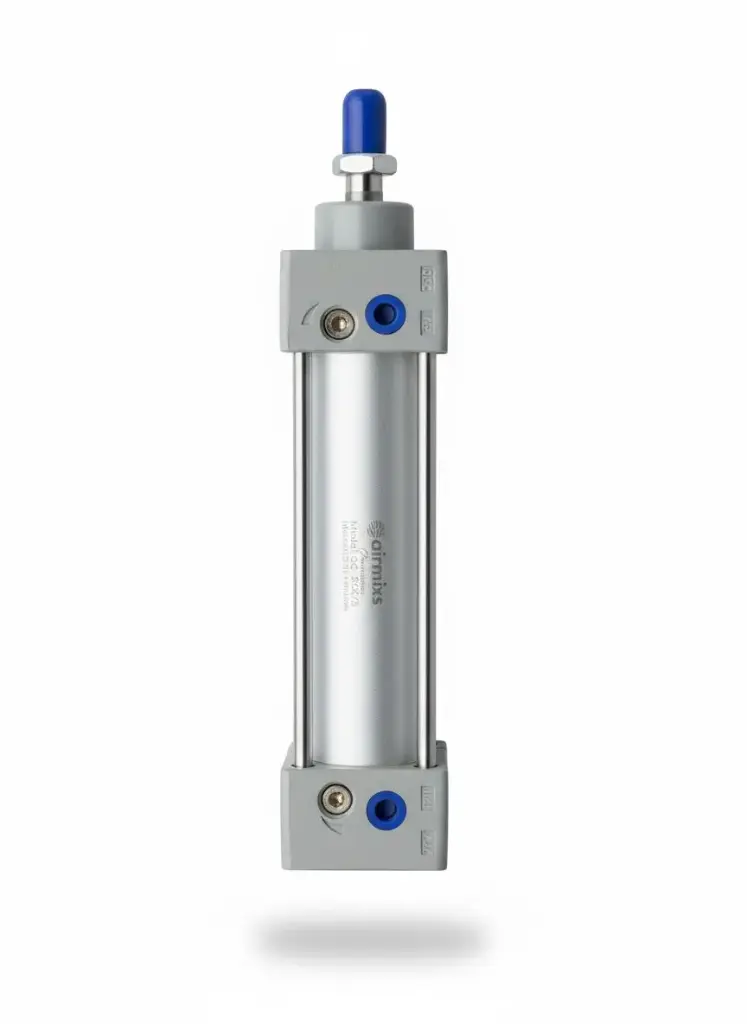

The AIRMIXS SC32X75 is a high-performance, double-acting pneumatic cylinder designed for precision linear motion in industrial automation. Featuring a 32mm bore and a 75mm stroke, this model is a compact yet powerful actuator perfect for short-stroke clamping, pushing, or ejection tasks.
Built to the ISO 6431 standard, the SC series utilizes a reinforced aluminum alloy barrel and heavy-duty steel tie rods for maximum structural integrity. Each unit is equipped with adjustable air cushioning at both ends to dampen the piston's impact, ensuring a quieter operation and significantly extending the service life of the internal seals.
Feature | Specification |
|---|
Model | SC32X75 |
Brand | AIRMIXS |
Bore Size | 32 mm |
Stroke Length | 75 mm |
Action Type | Double Acting |
Working Medium | 40 $\mu$m Filtered Compressed Air |
Operating Pressure | 0.1 ~ 0.9 MPa (14.5 ~ 130 PSI) |
Proof Pressure | 1.35 MPa (195 PSI) |
Operating Velocity | 50 ~ 800 mm/s |
Cushion Type | Adjustable Air Cushion (Both ends) |
Port Size | G 1/8" |
Piston Rod Thread | M10 x 1.25 |
Body Material | Aluminum Alloy |
Piston Rod Material | Hard-Chrome Plated Carbon Steel |
