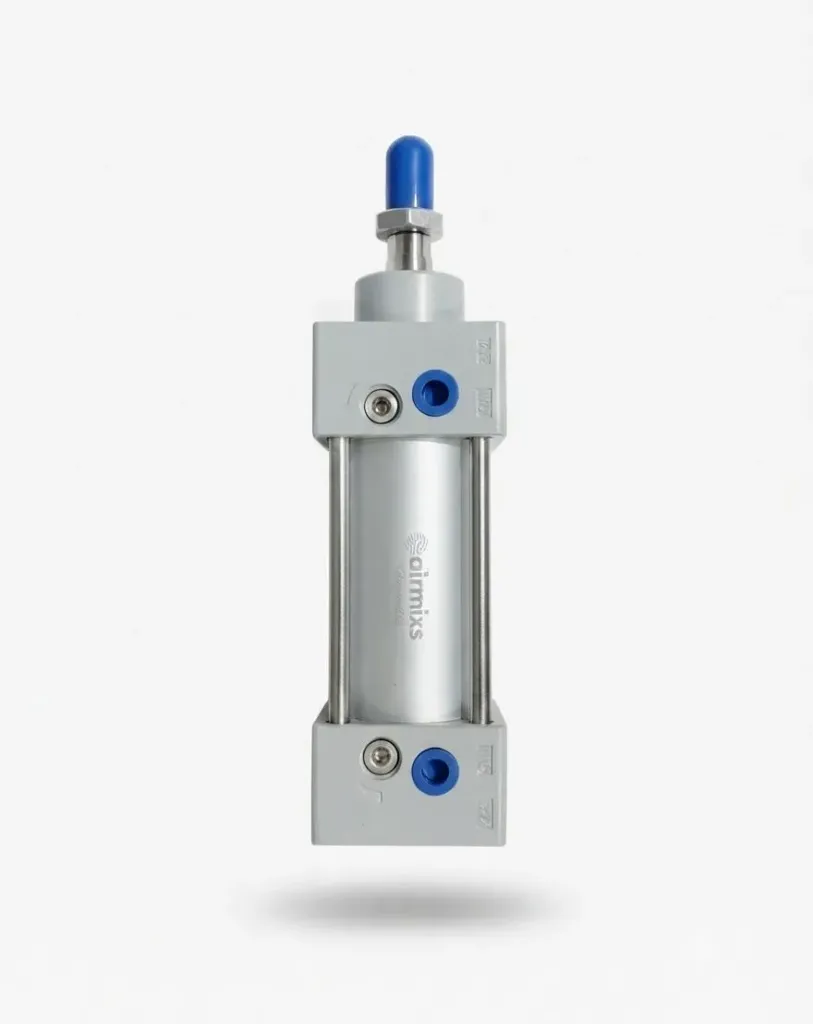

The AIRMIXS SC32-400 is an extra-long reach, double-acting standard pneumatic cylinder designed for specialized industrial automation tasks requiring extended linear travel. Featuring a 32mm bore and a substantial 400mm stroke length, this unit provides robust and dependable force for long-distance pushing, pulling, and material transfer applications. Its heavy-duty tie-rod construction and hard-anodized aluminum body ensure superior structural stability and long service life in demanding environments.
Technical Feature | Specification Details |
|---|
Brand Name | AIRMIXS |
Part Number / Model | SC32-400 |
Bore Size | 32 mm |
Stroke Length | 400 mm |
Acting Type | Double Acting |
Working Fluid | Compressed Air (Filtered through 40µm element) |
Operating Pressure Range | 0.15 – 1.0 MPa (21 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Port Size | PT 1/8" |
Piston Rod Thread | M10 × 1.25 |
Operating Speed Range | 30 – 800 mm/s |
Cushion Type | Adjustable Cushion |
Temperature Range | -20°C to +70°C |
Body Material | Hard-Anodized Aluminum Alloy |
