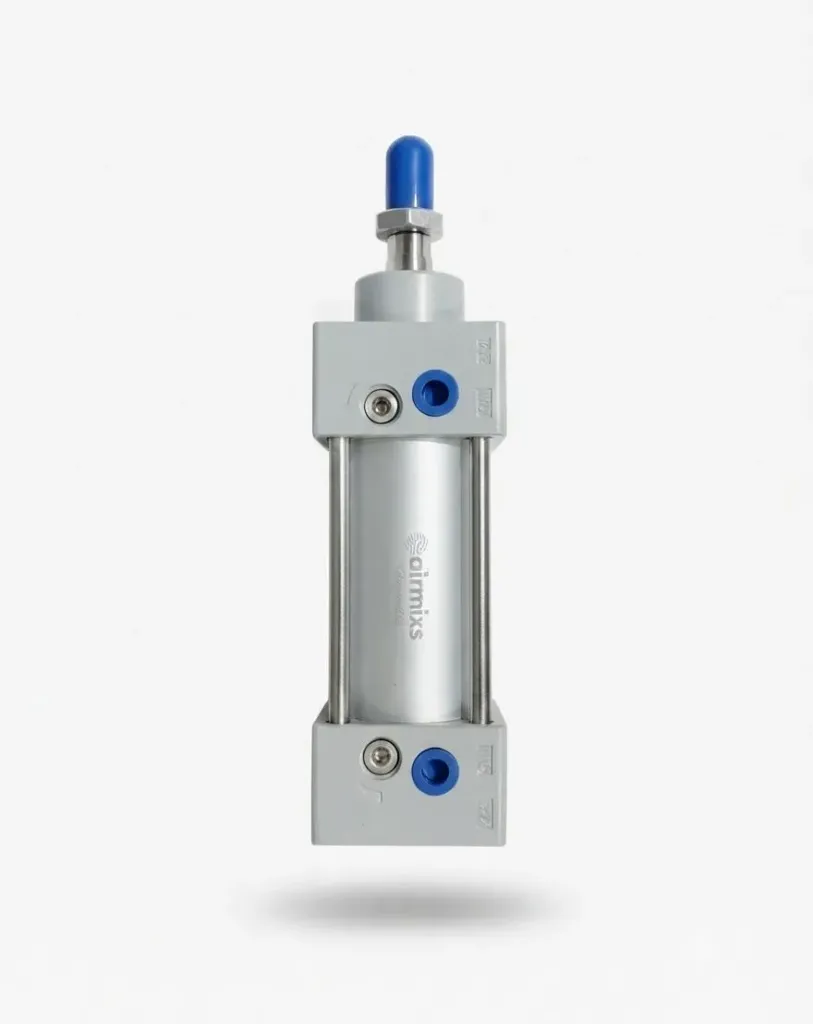

The AIRMIXS SC32-125 is a high-performance, double-acting standard tie-rod pneumatic cylinder designed for reliable linear motion, pushing, pulling, and clamping tasks in industrial automation applications. Built with a robust aluminum alloy body and precision components, it ensures smooth high-cycle operation and long-term durability.
Technical Feature | Specification Details |
|---|
Brand Name | AIRMIXS |
Part Number / Model | SC32-125 |
Bore Size | 32 mm |
Stroke Length | 125 mm |
Acting Type | Double Acting |
Working Fluid | Compressed Air (Filtered through 40µm element) |
Operating Pressure Range | 0.15 – 1.0 MPa (approx. 21 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Port Size | PT 1/8" (G 1/8") |
Piston Rod Thread | M10 × 1.25 |
Operating Speed Range | 30 – 800 mm/s |
Cushion Type | Adjustable Cushion |
Temperature Range | -20°C to +70°C |
Body Material | Hard-Anodized Aluminum Alloy |
