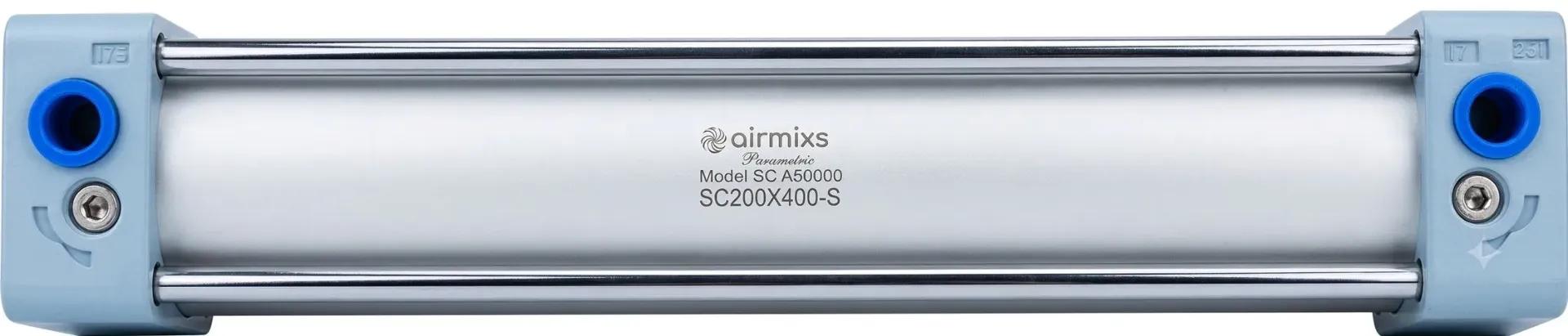

The SC 200x400-S is a large-bore, high-thrust double-acting tie-rod pneumatic cylinder designed for heavy industrial automation, pressing, lifting, and clamping operations. Featuring a 200 mm bore diameter and a long 400 mm stroke length, this unit comes equipped with a built-in magnetic piston ring for non-contact proximity switch sensing, durable aluminum alloy end caps, a hard chrome-plated piston rod, and dual adjustable end-of-stroke air cushioning.
Parameter | Specification |
|---|
Model Code | SC200X400-S |
Series / Standard | SC Series (Standard Industrial Heavy-Duty Tie-Rod Cylinder) |
Action Type | Double-Acting |
Bore Size | 200 mm |
Stroke Length | 400 mm |
Built-In Magnet ("-S" Suffix) | Yes (Sensor Ready for CS1 / CMS magnetic switches) |
Operating Pressure Range | 0.15 – 1.0 MPa (1.5 – 10.0 bar / 22 – 145 psi) |
Proof / Resistance Pressure | 1.5 MPa (15.0 bar / 215 psi) |
Pneumatic Port Connection | PT 3/4" (G / NPT options available) |
Operating Speed Range | 30 – 500 mm/s |
Working Temperature Range | -20°C to 70°C (Standard NBR Seals) |
Theoretical Thrust Force (at 6 bar) | ~18,849 N (Push) / ~17,671 N (Pull) |
Cushioning Type | Adjustable Air Cushioning at both ends |
Piston Rod Material | Carbon Steel with Hard Chrome Plating |
Barrel & End Covers Material | High-Grade Anodized Aluminum Alloy |
Working Medium | Filtered Compressed Air (40 µm filter element) |
