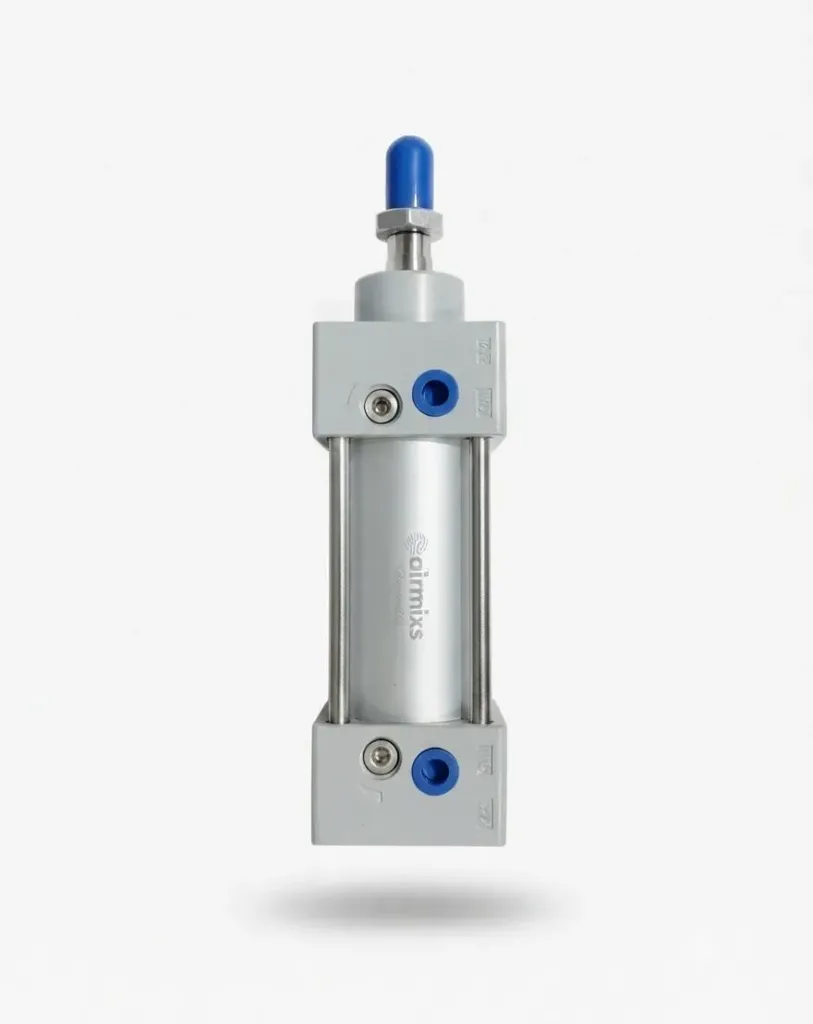

Built for high-force industrial automation, clamping, and heavy-duty linear positioning, the AIRMIXS SC100-50 Standard Pneumatic Cylinder provides substantial output force through its 100mm bore. Designed with a rugged aluminum alloy tie-rod structure, it incorporates an asymmetric two-way piston sealing system with an integrated oil-reservation function, ensuring minimal friction and extended service life. Equipped with adjustable cushion valves at both end covers, this double-acting cylinder offers controlled, low-impact deceleration, making it ideal for high-cycle industrial machinery.
Feature / Specification | Detail |
|---|
Brand / Series | AIRMIXS / SC Series Standard Tie-Rod Cylinder |
Model Code | SC100-50 (SC100X50) |
Action Type | Double-Acting |
Bore Size | 100 mm |
Stroke Length | 50 mm |
Working Medium | Compressed Air (Filtered through 40$\mu$m or finer mesh) |
Operating Pressure Range | 0.15 to 1.0 MPa (22 to 145 psi) |
Guaranteed Pressure Resistance | 1.5 MPa (215 psi) |
Operating Temperature | -20°C to 70°C (Standard NBR/TPU) / Up to 150°C with high-temp seals |
Operating Speed Range | 30 to 800 mm/s |
Cushion Type | Adjustable Buffer / Cushion on both end covers |
Port / Thread Size | PT 1/2" (G or NPT optional threads) |
Piston Rod Thread | M25 x 2.0 |
Position Sensing | Magnet-equipped standard (Compatible with magnetic sensors) |
Body Material | Extruded Aluminum Alloy |
Piston Rod Material | S45C Hard Chrome-Plated Carbon Steel |
Mounting Options | Basic, FA, FB, CA, CB, LB, TC, TCM1 |
