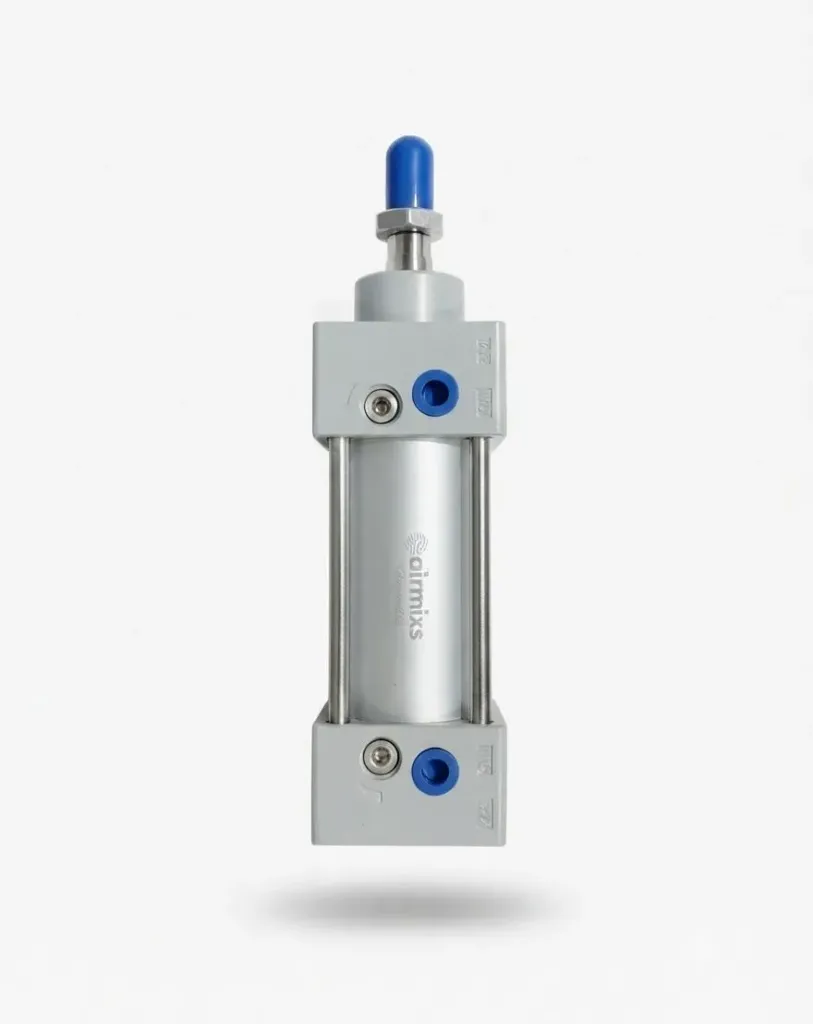

Built for demanding industrial automation, high-capacity material handling, and heavy linear actuation, the AIRMIXS SC100-200 Standard Pneumatic Cylindercombines a powerful 100mm bore with a 200mm stroke to deliver exceptional maximum output force (up to 700 kgf at 1.0 MPa). Constructed with a durable extruded aluminum alloy tie-rod profile, it integrates an asymmetric two-way piston sealing structure with an oil-reservation function to ensure low friction, smooth operation, and extended service life. Equipped with adjustable cushion valves at both end covers, this double-acting cylinder minimizes end-of-stroke impact and shock loading across continuous high-cycle operations.
Feature / Specification | Detail |
|---|
Brand / Series | AIRMIXS / SC Series Standard Tie-Rod Cylinder |
Model Code | SC100-200 (SC100X200) |
Action Type | Double-Acting |
Bore Size | 100 mm |
Stroke Length | 200 mm |
Working Medium | Compressed Air (Filtered through 40$\mu$m or finer mesh) |
Operating Pressure Range | 0.15 to 1.0 MPa (22 to 145 psi) |
Guaranteed Pressure Resistance | 1.5 MPa (215 psi) |
Operating Temperature | -20°C to 70°C (Standard NBR/TPU) / Up to 150°C with high-temp seals |
Operating Speed Range | 30 to 800 mm/s |
Cushion Type | Adjustable Buffer / Cushion on both end covers |
Port / Thread Size | PT 1/2" (G or NPT optional threads) |
Piston Rod Thread | M25 x 2.0 (Piston rod port thread: M20 x 1.5) |
Position Sensing | Magnet-equipped standard (Compatible with magnetic reed/solid-state sensors like CS1-U/CS1-F) |
Body Material | Extruded Aluminum Alloy |
Piston Rod Material | S45C Hard Chrome-Plated Carbon Steel |
Mounting Options | Basic, FA, FB, CA, CB, LB, TC, TCM1 |
