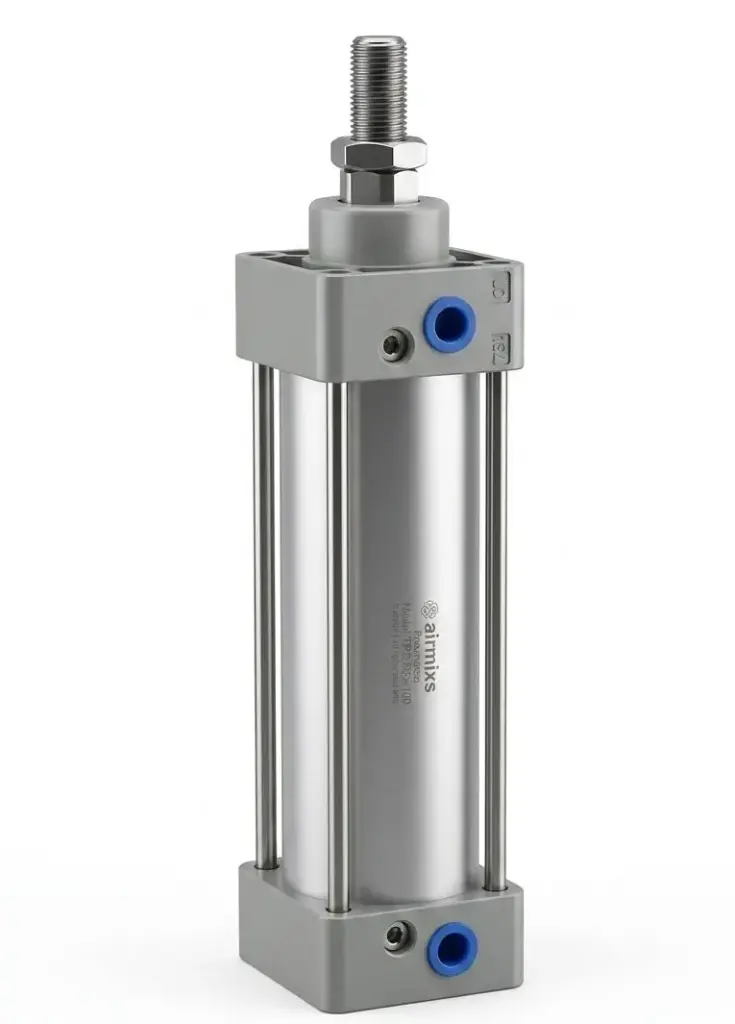

The SC 50x100 is a double-acting pneumatic cylinder, meaning it utilizes compressed air to power both the extension and retraction strokes. The "50" denotes a 50mm bore diameter, while "100" signifies a 100mm stroke length.
This cylinder features a robust aluminum alloy barrel and high-strength steel tie-rods that provide structural integrity and facilitate easy mounting of sensors or brackets. It is equipped with adjustable air cushions at both ends of the stroke to minimize impact noise and vibration, significantly extending the service life of both the cylinder and the machinery it drives
Feature | Specification |
|---|
Model | SC 50x100 |
Action Type | Double Acting |
Bore Size | 50 mm |
Stroke Length | 100 mm |
Port Size | G 1/4" BSPP |
Piston Rod Thread | M16 x 1.5 |
Working Medium | Filtered Compressed Air (40μm) |
Operating Pressure | 0.1 ~ 1.0 MPa (15 ~ 145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Speed Range | 50 ~ 800 mm/s |
Cushion Type | Adjustable Air Cushion (Both Ends) |
Material Type | Aluminum Alloy Barrel & Tie-Rods |
